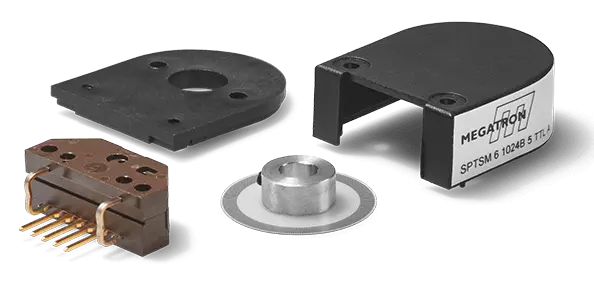

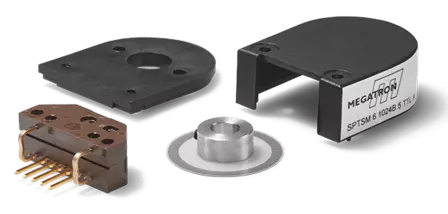

Optical incremental encoder SPTSM as kit encoder

Reliable and easy-to-install optoelectronic kit encoder with long lifespan and adaptability to the application

  • Up to 1024 pulses / 360° (max. 5000 ppr)
  • 2 channels + index
  • TTL or line driver output
  • For shafts Ø4 mm to Ø8 mm
  • Installation depth 16.9 mm
  • Option assembly tools for safe installation
  • Option connector with lock
  • Made in Germany
incrementalDifferential
Data sheet
Compare
Remember
Specifications
Resolution Up to 1024 ppr. (max. 5000 ppr.)
Functions / Features Without mech. stop, Kit-Encoder
Output signal Incremental
Protection class IP30
Sensor technology Optical Encoder
Shaft diameter Ø4..8 mm
Housing diameter 35 mm / 30 mm
Mounting Hub
Electrical connection Radial, Solder contacts, Connector
Effective electrical angle of rotation max. 360°
Housing depth 16.9 mm
Description
The optical incremental kit encoders of the series SPTSM are ... more
Description
Close
Product description: Optical incremental encoder SPTSM as kit encoder

The optical incremental kit encoders of the series SPTSM are ideal for applications that require an optimal adaptability of the sensor and a long lifespan.

The optical incremental kit encoders of the series SPTSM are characterized by their reliability and long lifespan. The kit encoder is suitable for Ø4 mm to Ø8 mm shafts and can be installed with two screws in the application. The sensor detects angles contactless. The optional distance and centering gauge is required to mount the angle encoder. A comfortable choice of electrical interfaces as standard, such as soldering / plug-in contacts (TTL), optional connector with lock (TTL or Linedriver), complete the profile.
