Optical Encoder Miniature MOT6
Optical Encoder Miniature MOT6

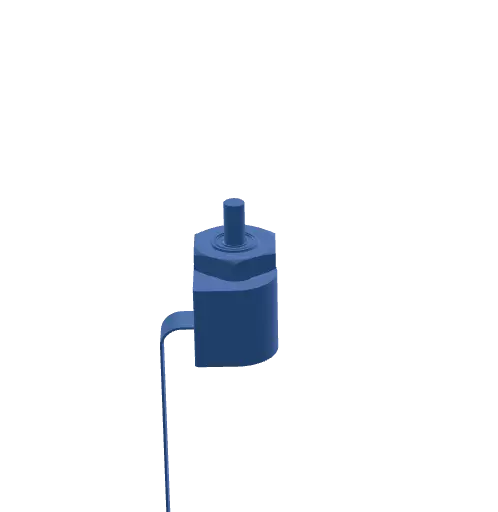

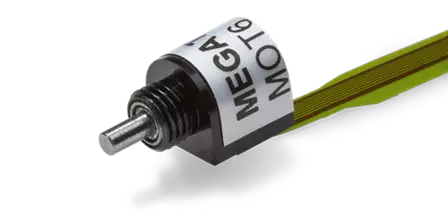

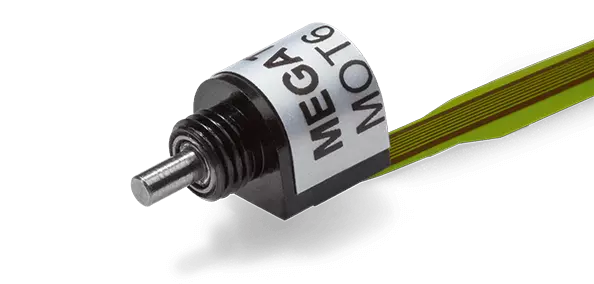

Miniature incremental encoder MOT6

Incremental encoder in very compact Ø6 mm housing and high resolution with up to 1024 ppr. for use in miniaturized devices

  • Very compact housing with Ø6 mm
  • Easy connection to customer electronics
  • 1024 ppr. with 2 channels and reference pulse
  • Operating voltage 3.2 V, NPN voltage output
  • Durable thanks to ball bearing
incremental
Data sheet
Compare
Remember
Specifications
Resolution 1024 ppr.
Functions / Features Without mech. stop, Metal housing
Output signal Incremental
Protection class IP40
Sensor technology Optical Encoder
Shaft diameter 1.50 mm
Housing diameter 6 mm
Mounting Bushing
Electrical connection Radial, Cable
Effective electrical angle of rotation max. 360°
Housing depth min. 6.1 mm
Description
The optical rotary encoder series MOT6 in very compact Ø6 mm ... more
Description
Close
Product description: Miniature incremental encoder MOT6

The optical rotary encoder series MOT6 in very compact Ø6 mm housing is for applications, where a sensor with high degree of miniaturization, high resolution and customer-friendly mounting is important.

The MOT6 incremental encoder is characterized by very small dimensions. It is particularly suitable for use in miniaturized devices. Typical fields of application are medical robots, medical devices and special robots. The incremental encoder with A, B, Z channels and 1024 ppr., an operating voltage of 3.2 V and NPN voltage output allows easy connection to customer electronics via the included board with mating connectors.
