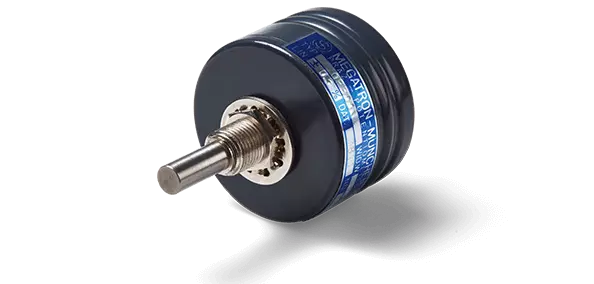

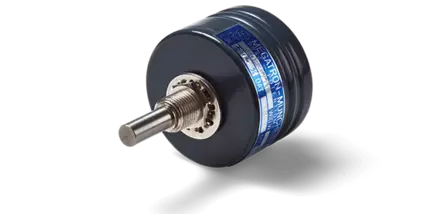

Singleturn wirewound oil-filled potentiometer OF5001

Robust oil-filled single-turn wire-wound potentiometer with 62 mm metal housing, mechanical end stop and 5 watt load capacity for manual adjustments

  • Lifetime over 0.2 million revolutions (2 million on request)
  • Linearity ±0.5 %
  • Resistance range 100 Ohm to 50 kOhm
  • Electrically effective angle of rotation 280° ±5° (with stop)
  • Load capacity up to 5 watts
  • Protection class IP65, resistant to moisture and dust
  • Operating temperature: -30 °C to +60 °C

PotentiometerOil-filledTandem
Data sheet Product enquiry
Specifications
Sensor technology Wirewound Potentiometer
Effective electrical angle of rotation max. 280°
Functions / Features Without mech. stop, With mech. stop, Metal housing, Opt. multiganged/ tandem, Opt. rear shaft, Oil filled
Resolution Depends on resistance value
Output signal Analogue
Electrical connection Axial, Solder contacts
Protection class IP65 standard
Mounting Bushing
Shaft diameter 6.00 mm, 6.35 mm
Housing diameter 62 mm
Housing depth 50 mm
Description
For applications with moderate adjustments and circuits with ... more
