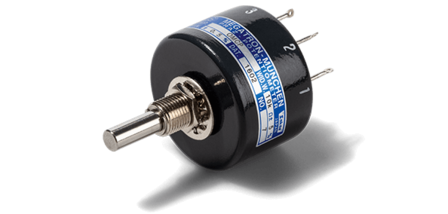

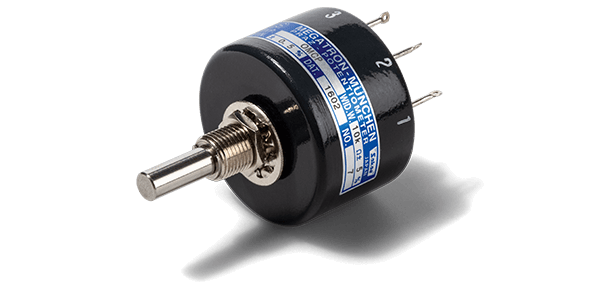

Oil-filled Conductiv Plastic Potentiometer OMCP

Oil-filled conductive plastic potentiometer with 32 mm metal housing in a robust and durable design

  • Lifetime over 10 million revolutions
  • ±1 % independent linearity (optional ±0.5 %)
  • Electrically effective angle of rotation 280° ±5°
  • Resistance range 500 Ohm to 100 kOhm
  • Protection class IP65, resistant to moisture and dust
  • Operating temperature -30 °C to +60 °C
PotentiometerOil-filled
Data sheet Product enquiry
Specifications
Sensor technology Conductive Plastic Potentiometer
Effective electrical angle of rotation max. 280°
Functions / Features Without mech. stop, Metal housing, Oil filled
Resolution Nearly infinite
Output signal Analogue
Electrical connection Axial, Solder contacts
Protection class IP65 standard
Mounting Bushing
Shaft diameter 3.17 mm, 5.00 mm
Housing diameter 32 mm
Housing depth 21.5 mm
Description
Robustness and precision for demanding applications The OMCP is ... more
