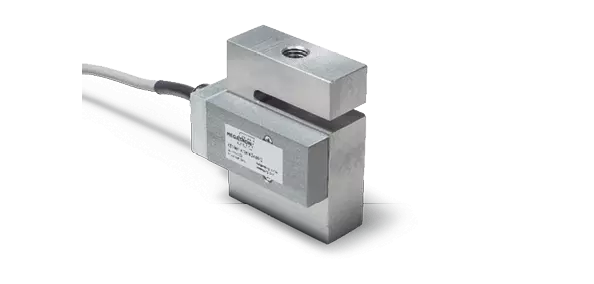

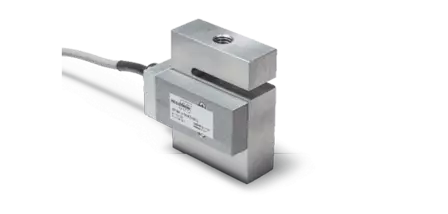

S-Beam force transducer KT1501
S-Beam force transducer KT1501

S-Beam Series KT1501

Reliable S-Beam sensor with integrated amplifier

Product is no longer available. Successor product KT1503

To the series KT1503

  • With integrated amplifier
  • Aluminium load cell
  • Force application by internal threads M12
Data sheet
Specifications
Design S-Beam
Nominal Load From 0..1 kN to 0..10 kN
Direction of Force Tension and Compression
Output Signal 4..20 mA with integrated amplifier, 0..10 V with integrated amplifier
Amplifier With Amplifier
Protection Class IP54
Description
Series KT1501 force transducer are very compact models and do ... more
Description
Close
Product description: S-Beam Series KT1501

Series KT1501 force transducer are very compact models and do not differ in their dimensions over all offered capacities. Because of their shape (S-Beam) this force transducers are recommended for applications with tension force especially. Force is applicated by M12 internal screw thread. DMS Wheatstonebridges (measuring principle) have delivered an optimal performance since decades and ensures a long lifetime.
