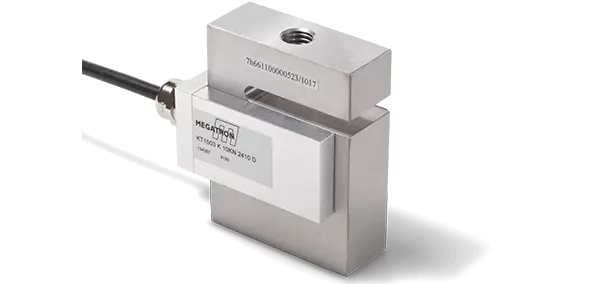

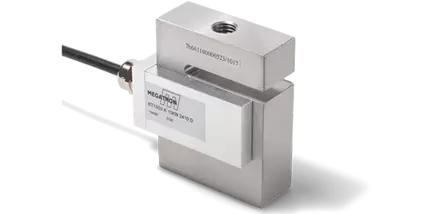

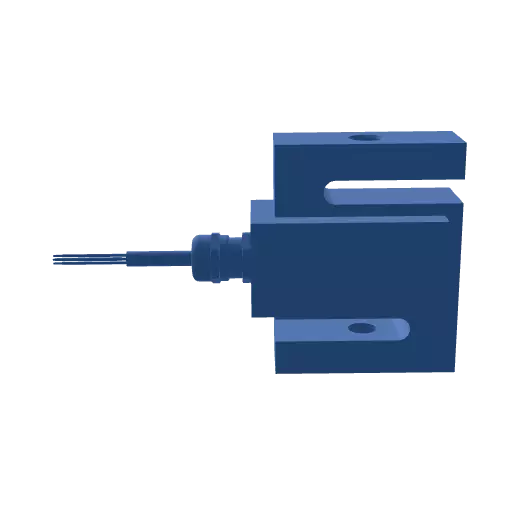

S-Beam force sensor KT1503

S-Beam force sensor with integrated digital amplifier and M12 female thread for measuring ranges up to 10 kN

  • S-Beam with integrated digital transducer
  • Strain gauge principle
  • Aluminium body
  • Output 0…10 V, 4…20 mA @24 VSUP
  • Force transmission via M12-thread for 1 kN…10 kN
  • Easy to install, stable and reliable
DMS Wheatstone bridge circuitVDCmA
Data sheet
Specifications
Design S-Beam
Nominal Load 1 kN, 2 kN, 5 kN, 10 kN
Direction of Force Tension and Compression
Output Signal 0..10 V with integrated amplifier, 4..20 mA with integrated amplifier
Protection Class IP40
Amplifier With Amplifier
Description
In the KT1503 series of force transducers, the force is applied ... more
Description
Close
Product description: S-Beam force sensor KT1503

In the KT1503 series of force transducers, the force is applied via the M12 female thread for measuring ranges up to 10 kN. The transducers are based on the S-Beam principle. The force is applied via the internal thread for compressive or tensile forces. The aluminium measuring body is available from the measuring range 1 kN…10 kN in an independent design. The load cell has an integrated digital signal converter and provides output signals of 0…10 V, 4…20 mA @ 24 VSUP. The Wheatstone strain gauge full bridge measuring principle has been proven over decades for this type of force sensor and ensures a long service life.
