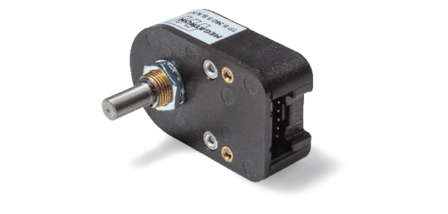

Optoelectronic Encoder Series TP

Flat encoder with ball bearings for long life requirements or with high torque sleeve bearing as manual encoder

The product is no longer available. Successor product SPM

To the series SPM

Specifications
Sensor technology Optical Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop
Resolution 50...1024 ppr.
Output signal Incremental
Protection class IP40
Mounting Bushing
Description
flat design <17 mm resolution up to 1024 ppr options: ball ... more
Description
Close
Product description: Optoelectronic Encoder Series TP
  • flat design <17 mm
  • resolution up to 1024 ppr
  • options: ball bearing, line driver, index pulse, high torque

Take a look at our current rotary encoders
