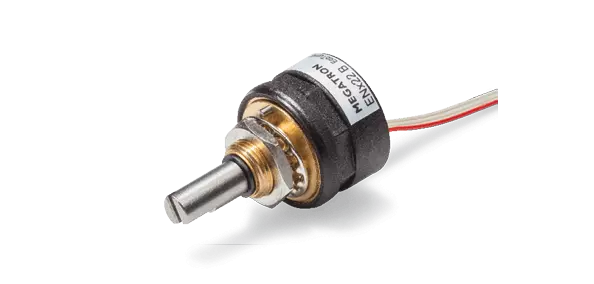

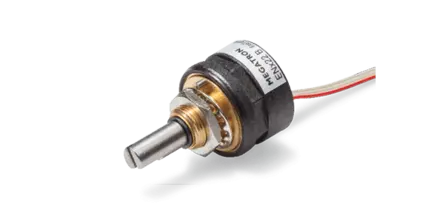

Halleffect rotary encoder with SSI/SPI signal, bushing mount Series ENS22B

Compact rotary encoder optional with high performance polymer sleeve bearing, potted PCB, flat ribbon cable

Product is no longer available. Successor product ETS25

Click here for series ETS25

Resolution	Absolute 12 bit
Functions / Features	Without mech. stop
Protection class	Up to IP65
Sensor technology	Hall Effect Encoder
Mounting	Bushing
Effective electrical angle of rotation	max. 360°

Description

SSI- Interface (redundant ... more

Product description: Halleffect rotary encoder with SSI/SPI signal, bushing mount Series ENS22B

SSI- Interface (redundant SPI version on request)
Resolution up to 12 bit
With high or low torque
With or without mechanical stops
Life expectancy > 100.000.000 shaft revolutions
Potted electronics
