Rotary encoder MAB22APM

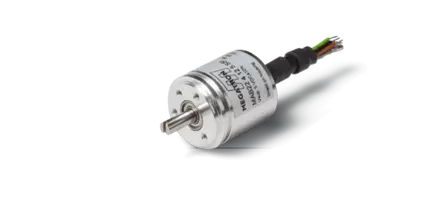

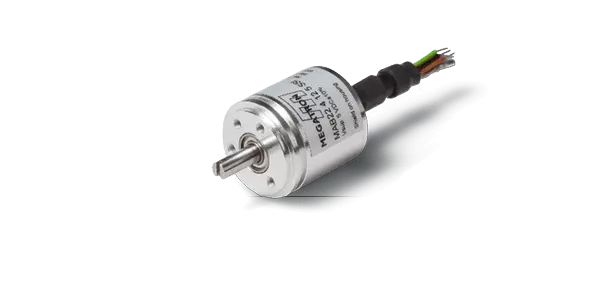

Hall-Effect Multiturn Absolute Encoder MAB22APM

Programmable multiturn encoder with analogue output and ball bearings in a space-saving 22 mm standard housing

The product is no longer available. Successor product ETA25PM

To series ETA25PM

Home IconSensorsMore Products Angle SensorsMAB22APM
Resolution Absolute 12 bit
Functions / Features Without mech. stop
Output signal Analogue
Protection class Up to IP65
Sensor technology Hall Effect Encoder
Mounting Servo flange, Threaded holes
Effective electrical angle of rotation 0...10° up to 0...72000°
Description
Multiturn Encoder MAB22APM Start and end points easily set in field via dry contacts 10° to 200 x 360° Ø22 mm housing with servo-mount flange 12 bit resolution Analogue output: 0…10 V ... more
Description
Close
Product description: Hall-Effect Multiturn Absolute Encoder MAB22APM

Multiturn Encoder MAB22APM

  • Start and end points easily set in field via dry contacts 10° to 200 x 360°
  • Ø22 mm housing with servo-mount flange
  • 12 bit resolution
  • Analogue output: 0…10 V
  • Supply voltage 16…30 V
  • Ball bearings
