Rotary Encoder MAB50A
Rotary Encoder MAB50A

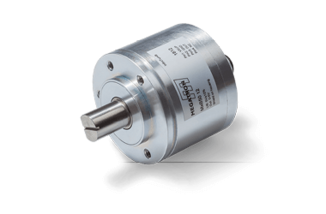

Hall-Effect Absolute Encoder Series MAB50A

Extremely rugged, completely sealed encoder with analogue output for high radial shaft load

Product is no longer available. Successor product HTx36

Click here for series HTx36

  • Electrical angle 360°
  • 12 bit resolution
  • IP67 protection class
  • analogue output: 0-10V, 0-5V ratiometric, 4-20 mA, 0-20 mA
  • redundant outputs
  • alternative with 2 potential-free switches on individual positions
  • supply voltage: 5V, 24 V, 9-30 V
  • Ø 50 mm housing with servo mount flange
  • rugged ball bearings for high radial shaft load
Specifications
Sensor technology Hall Effect Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop
Resolution Absolute 12 bit
Output signal PWM, Analogue
Protection class Up to IP67
Mounting Servo flange, Threaded holes
Description
The MAB50A is a very rugged and versatile angle sensor. It is ... more
Description
Close
Product description: Hall-Effect Absolute Encoder Series MAB50A

The MAB50A is a very rugged and versatile angle sensor. It is suited for applications in rough environment (IP67). The contactless measurement principle ensures the best lifespan. Due to the 12 mm ball bearings also higher radial load could be carried.
