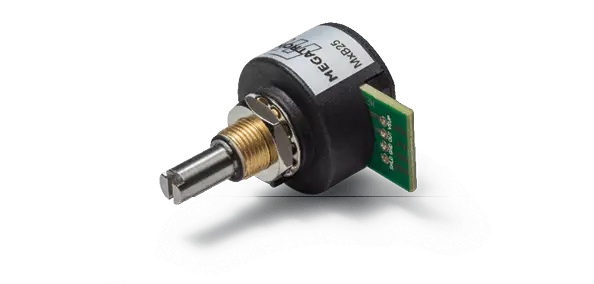

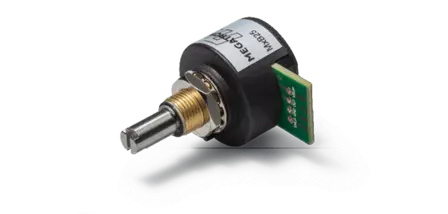

Hall-Effect Absolute Encoder Series MAB25

Encoder with different serial interfaces and solder lugs for flexible mounting

Product is no longer available. Successor product ETS25

Click here for series ETS25

Specifications
Resolution Absolute 10 bit, Absolute 12 bit, Absolute 14 bit
Functions / Features Without mech. stop
Output signal SSI, SPI, SER
Protection class Up to IP65
Sensor technology Hall Effect Encoder
Mounting Bushing
Effective electrical angle of rotation max. 360°
Description
 Rotary Encoder MAB25 Serial-microcontroller-interface (SER)  ... more
Description
Close
Product description: Hall-Effect Absolute Encoder Series MAB25

 Rotary Encoder MAB25

  • Serial-microcontroller-interface (SER)
  • Serial peripheral interface (SPI)
  • Synchronous serial interface (SSI)
  • Electrical angle 360°
  • Resolution 10 bit, 12 bit or 14 bit
  • Supply voltage: 3,3 V, 5 V, 24 V
  • Redundant outputs (SPI-interface)
  • 25 mm housing diameter
  • High lifespan due to polymer bearing
