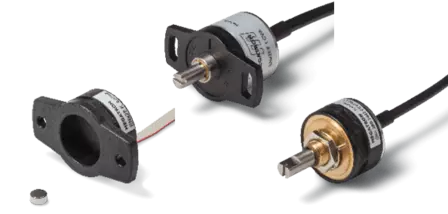

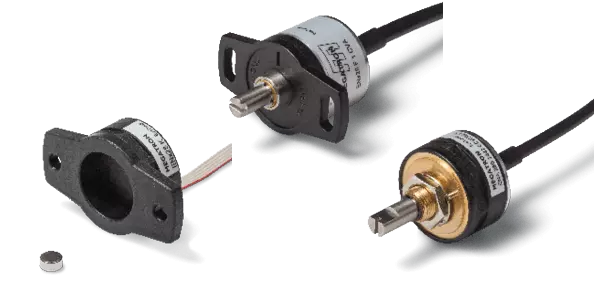

Contactless Hall Effect Encoder Series ENS28 - EcoTurn®
Economic sensor with serial output and different interfaces
Product is no longer available. Successor product ETS25
To the series ETS25
Specifications
| Resolution | Absolute 10 bit, Absolute 12 bit, Absolute 14 bit |
|---|---|
| Functions / Features | Without mech. stop |
| Output signal | SSI, SPI |
| Protection class | Up to IP65 |
| Sensor technology | Hall Effect Encoder |
| Mounting | Bushing, Flange |
| Effective electrical angle of rotation | max. 360° |
Description
Contactless sensor technology Ø 28 rugged low-cost plastic ... more
Description
CloseProduct description: Contactless Hall Effect Encoder Series ENS28 - EcoTurn®
- Contactless sensor technology
- Ø 28 rugged low-cost plastic housing
- 3 housing types: bushing, flange and kit
- Encapsulated electronics
- Resolution SPI-interface 14 Bit
- Resolution SSI-interface 12 Bit
- Redundant output
- With and without mechanical stop
- With several actuating torques (bushing version)
- Long lifespan due to polymer sleeve bearing or sinter bronze bearing
- Supply voltage 5 VDC, 9…30 VDC
- Numerous mechanical and electrical options
Advantage of the SSI-Standard:
- High disturbance immunity due to differential signals
- Simple signal processing for SPS, counters and more
