Rotary encoder ENx28
Rotary encoder ENx28

Contactless Hall Effect Encoder Series ENI28 - EcoTurn®

Economic incremental encoder with high functionality

Product is no longer available. Successor product ETI25

To the series ETI25

Data sheet
Specifications
Sensor technology Hall Effect Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop
Resolution resolution 1...128 ppr. free selectable, 256, 512, 1024
Output signal incremental, read out of the absolute position optionally possible
Protection class Up to IP65
Mounting Flange, Bushing
Description
Incremental encoder ENI28 Contactless sensor technology ... more
Description
Close
Product description: Contactless Hall Effect Encoder Series ENI28 - EcoTurn®

Incremental encoder ENI28

  • Contactless sensor technology (Hall-Effect)
  • Ø 28 rugged low-cost plastic housing

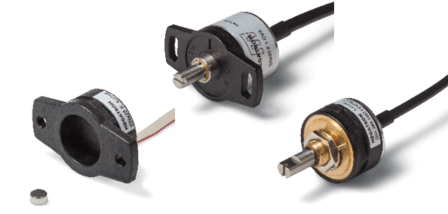

  • 3 housing types: bushing, flange and kit
  • Encapsulated electronics
  • Resolution: 1...128, 256, 512, 1024 ppr.
  • With several actuating torques (bushing version)
  • Long lifespan due to polymer sleeve bearing or sinter bronze bearing
  • Optional read out of the absolute position due to counting up
  • Supply voltage 5 VDC, 9…30 VDC
  • Numerous mechanical and electrical options
