Contactless Hall Effect Encoder Series ENI22 - EcoTurn®

Economic incremental encoder with high functionality

Product is no longer available. Successor product ETI25

Click here for series ETI25

Data sheet ENI22B Data sheet ENI22K Data sheet ENI22F
Specifications
Resolution resolution 1...128 ppr. free selectable, 256, 512, 1024
Functions / Features Without mech. stop
Output signal incremental, read out of the absolute position optionally possible
Protection class Up to IP65
Sensor technology Hall Effect Encoder
Mounting Bushing, Flange
Effective electrical angle of rotation max. 360°
Description
Incremental encoder ENI22 Contactless sensor technology ... more
Description
Close
Product description: Contactless Hall Effect Encoder Series ENI22 - EcoTurn®

Incremental encoder ENI22

  • Contactless sensor technology (Hall-Effect)
  • Ø 22 rugged low-cost plastic housing

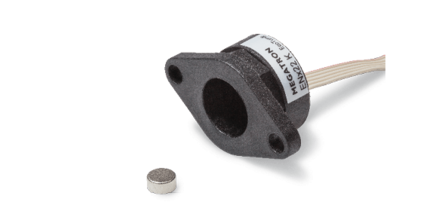

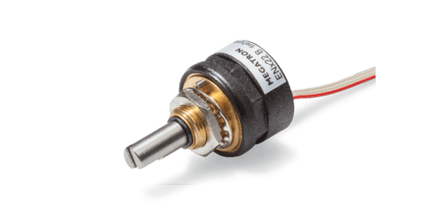

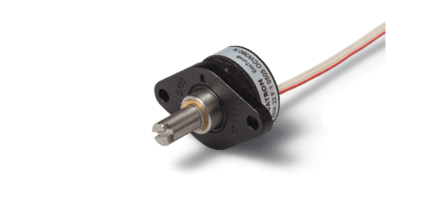

  • 3 housing types: bushing, flange and kit
  • Encapsulated electronics
  • Resolution: 1...128, 256, 512, 1024 ppr.
  • With several actuating torques (bushing version)
  • Long lifespan due to polymer sleeve bearing or sinter bronze bearing
  • Optional read out of the absolute position due to counting up
  • Supply voltage 5 VDC, 9…30 VDC
  • Numerous mechanical and electrical options
