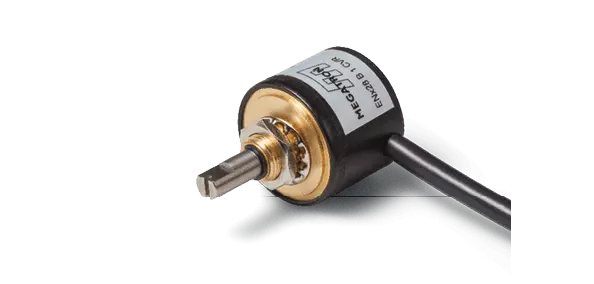

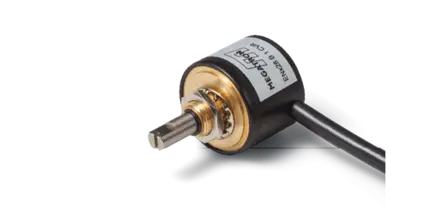

Contactless Hall Effect Encoder Series ENA28 - EcoTurn®

Economic sensor with analog output - in many cases replacement for precision potentiometers

Product is not available. Successor product ETA25

Contactless sensor technologie (Hall-Effect)
Ø 28 rugged low-cost plastic housing
3 housing types: bushing, flange and kit
Encapsulated electronics
Programmable angle range from 0..20° to 0..360°
With and without mechanical stop
With several actuating torques (bushing version)
Long life time due to polymer sleeve bearing or sinter bronze bearing
Analog output 0..5 V, 0..10 V, 0/4..20 mA, PWM
Redundant outputs
Supply voltage 5 VDC, 9..30 VDC
Signal characteristics programmable from factory
Numerous mechanical and electrical options
