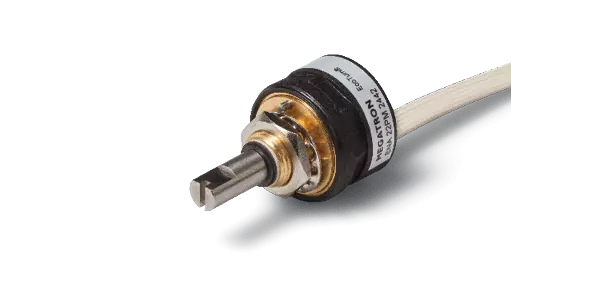

Rotary encoder ENA22PM
Rotary encoder ENA22PM

Contactless Hall Effect Encoder Series ENA22PM - EcoTurn®

Space-saving programmable multiturn-encoder with bushing - predestinated as replacement for precision multiturn-potentiometers

Product is no longer available. Successor product ETA25PM

Click here for series ETA25PM

  • Alternative to multiturn-potentiometers
  • Start and end points, easily set in field via dry contacts
    10° bis 200 x 360°
  • Ø22 mm housing with bushing
  • 12 bit resolution
  • Analogue output: 0…10 V
  • Supply voltage 16…30 V
  • > 25 million turns life
Data sheet
Specifications
Sensor technology Hall Effect Encoder
Effective electrical angle of rotation 0...10° up to 0...72000°
Functions / Features Without mech. stop
Resolution Absolute 12 bit
Output signal Analogue
Protection class Up to IP65
Mounting Bushing
Description
The encoder aeries ENA22PM allows a flexible and exact adjusting ... more
Description
Close
Product description: Contactless Hall Effect Encoder Series ENA22PM - EcoTurn®

The encoder aeries ENA22PM allows a flexible and exact adjusting of the start and end point as well as the direction of the signal by the customer. The counter state of up to 200 turns is stored in a non-volatile memory. During power off, it is possible to turn the shaft ±179° without loss of the position value.
