Incremental linear transducer with TTL or Line Driver output in high resolution up to 5 µm for 30 to 50 mm strokes

  • High resolution up to 5 µm
  • For 30 mm or 50 mm stroke
  • accurate sleeve bearing
  • Easy mounting on shaft  8h6mm
  • Temperature stable counting pulses because of glass scale
incremental
Data sheet
Compare
Remember
Specifications
Effective electrical travel 30 mm, 50 mm
Sensor Technology Incremental (Optical)
Protection Class IP40
Mechanical Detection Type Front side rod with/without spring return
Electrical Outlet Type Round Cable, Connector
Mounting Screw Mounting / Bore Holes
Actuating speed < 2 m/s
Resolution 5 µm, 10 µm
Min. operating temperature 0 °C
Max. operating temperature +60 °C
Supply voltage 5 V
Electr. output signal TTL, Line Driver
Minimum overall length Small (< 15 cm), Medium (15 to 50 cm)
Description
The MSV series is an incremental linear encoder. The mechanical ... more
Description
Close

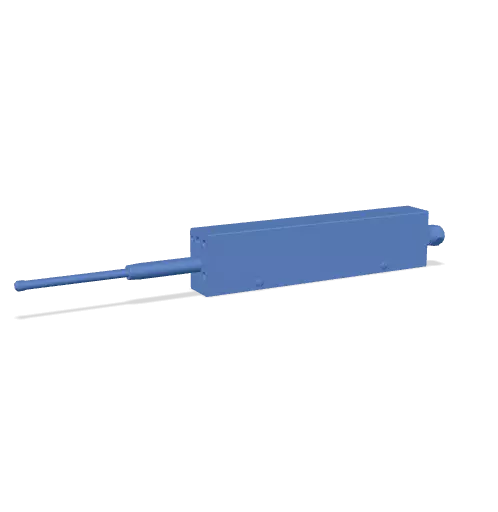

Product description: Incremental Linear Transducer MSV

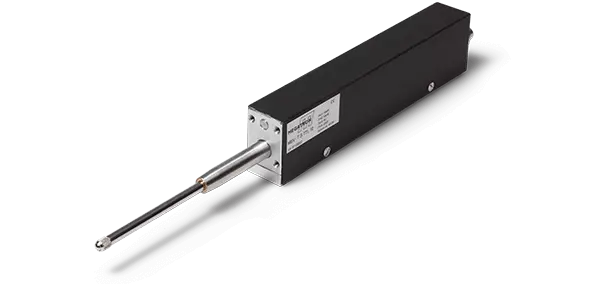

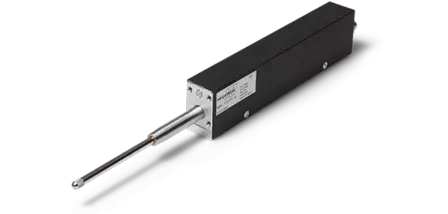

The MSV series is an incremental linear encoder. The mechanical detection of linear movement is done by a front guided push rod with inside spring return device. To reach high accuracy, the push rod is guided with precise sleeve bearings. The precise sleeve bearings are placed inside the shaft with the fitting diameter of 8mmh6. On the push rod, an accurate glass scale is mounted. Inside the sensor housing, the glass scale passes an electronic board with optical detector which generates counting pulses in TTL or Line Driver level up to 5 µm resolution. Due to the glass material, the measurement is very temperature stable.
