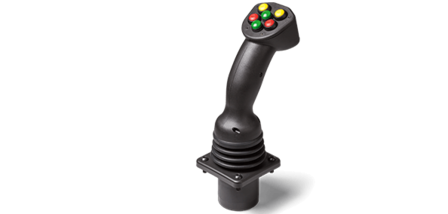

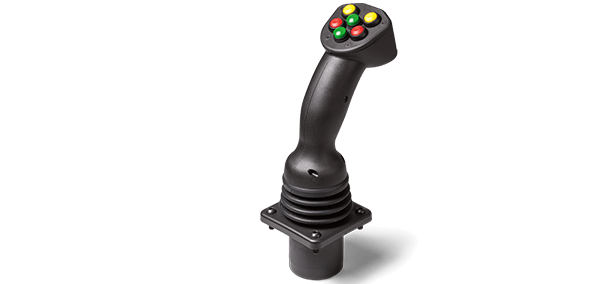

Hand joystick-TRY52
Hand joystick-TRY52

Hand Joystick TRY52

Highly customizable hand joystick with cobra handle and compact size

  • 1 and 2 axes
  • Up to 10 millions cycles at high loads
  • IP class up to 63
  • Multifunction handle for additional functions, e.g. switches, rockers,
    deadman
  • Available with USB or CANbus interface
CANopenCANj1939VDCUSB connectionProtection class IP65
Data sheet
Compare
Remember
Specifications
Size Hand Joystick
Technology Hall Effect
Axes 1, 2
Return Mechanism Spring Return
Output interface Analog, USB, CAN (J1939), Voltage Regulator
Housing depth under panel 54.6 mm
Number of Pushbuttons 1, 2, 3, 0, ≥4
Sealing above panel Up to IP63-65 depending on handle configuration
Limiter plate Round, Slotted x direction (1 axis), Diamond (square, rotated 45°), Plus, Slotted y direction (1 axis), Square
Description
The TRY52 offers everything you need in a joystick for ... more
Description
Close
Product description: Hand Joystick TRY52

The TRY52 offers everything you need in a joystick for heavy-duty applications: High durability of all components, IP68 (depending on specific configuration) and an ergonomic handle design for the integration of additional functional devices such as switches, rockers, mini joysticks, trigger, deadman switch, and others.

Application example joysticks in mobile machines
