Hand Joystick Series 890

Large heavy-duty joystick with stock grip handle of the highest quality with configurable sensors

  • Outstanding quality of mechanics and sensor technology for many years of reliable operation
  • Conductive plastic potentiometers or Hall sensors (both also available as redundant version) as ideal solution for your electronics
  • Wide range of configuration options for switches, latching positions, etc. to meet safety-critical requirements
  • Haptics and behavior of the x and y-axis can be adjusted separately for optimization for special application
  • Available with spring return to central position or with friction brake
  • Protection class IP65 (above the panel)
Axes 1, 2, 3
Interface Analog
Size Hand Joystick
Return Mechanism Spring Return, Friction Clutch
Technology Potentiometric, Hall Effect
Housing depth under panel ≤ 60 mm
Number of Pushbuttons 0, 1
Sealing above panel IP65
Limiter plate Square, Round, Plus, Slotted y direction (1 axis), Slotted x direction (1 axis), L-shaped (forward x and y only)
Description
Close

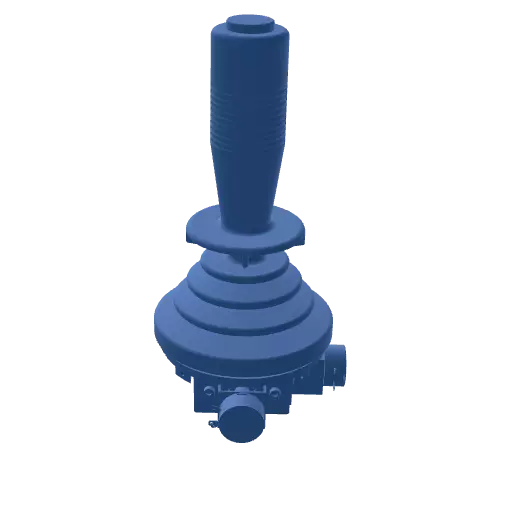

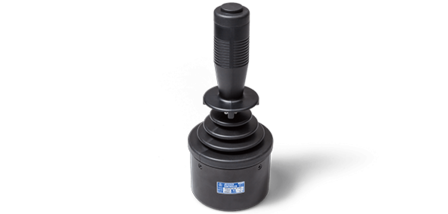

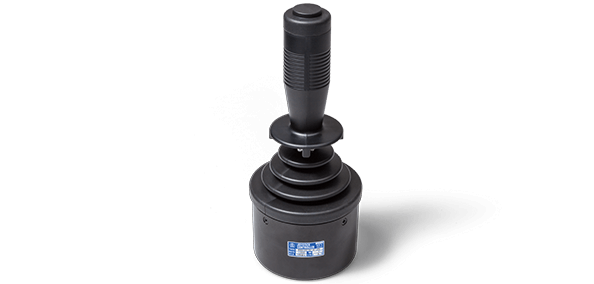

Product description: Hand Joystick Series 890

The large Hand Grip Joysticks of the 890 series with stock grip handle were specially developed for the multi-axis control of machines in tough, demanding environments, where the highest requirements on quality and feel must be met and where the sensors must be configurable. The joysticks are a guarantee for success in demanding applications with up to three axes.
Often, the resetting behavior and spring strength must be adjusted differently for each direction of movement of the joystick in order to be able to meet the requirements of the application. In the 890 series, the axis mechanics are made of metal and the axes are designed via separate shafts for the x, y axes. Therefore, sensors and behavior of the individual axes can be strongly configured independently of one another:

  • The joystick handle can either be configured to return automatically to the center position by a spring (different spring strengths available), or that it remains at its current deflection by integrating a friction brake.
  • Optionally, locking positions (for x- and y-axis) can be realized, so that the user feels e.g. that the center position has been reached

Consequently, the joystick’s feel can be ideally matched to the application.
For safety-critical applications, additional micro switches can be ordered, which switch at a customer-defined deflection angle. Redundant switching configurations are also possible.
The following micro switches are often installed:

  • Microswitch for the detection of the center position (for x and y-axis)
  • Microswitch for detection of the deflection by 5° 10°or 15°(for x and y-axis)

As main sensors for measuring the angular deflection usually potentiometers are used with the 890 series, since they have the advantage of EMC immunity as passive components. However, modern Hall sensors are also optionally available, which have the advantage of a contactless measuring principle and therefore show only minimal drift of the output signal during long-term operation. Both sensor options are also available as redundant version.
