Magnetical Rotary Encoder HSM22S

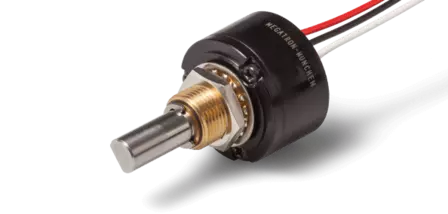

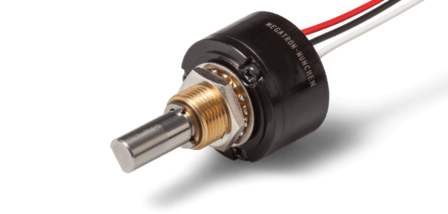

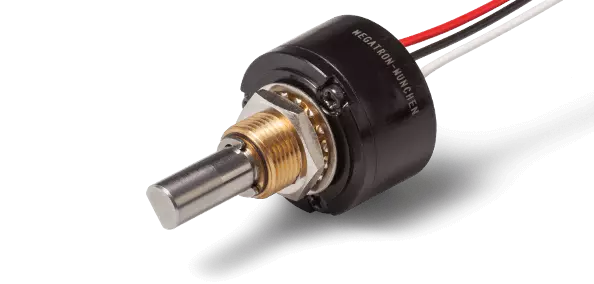

Magnetic rotary encoder (Hall effect) HSM22S

Rotary encoder with wide operating temperature range in protection class IP65 in Ø22,5 mm housing with optional redundant electronics

  • Wide operating temperature range -40…105 °C
  • Also, available with redundant electronics
  • Only 13.1 mm housing depth
  • Compact Ø22.5 mm housing
  • 5 V, 12 V or 24 V supply voltage
  • IP65
  • Sleeve bearing
Resolution Absolute 12 bit
Functions / Features Without mech. stop
Output signal Analog
Protection class IP65
Sensor technology Hall Effect Encoder
Shaft diameter 6.00 mm
Housing diameter 22.5 mm
Mounting Bushing
Electrical connection Axial, Strands
Effective electrical angle of rotation max. 360°
Housing depth min. 13.9 mm
Description
Close
Product description: Magnetic rotary encoder (Hall effect) HSM22S

One application field of the HSM22S rotary encoder series is the replacement of potentiometers with the widely used 22.5 mm housing diameter and the overall compact housing dimensions. For increased operational safety requirements, the HSM22S is also available with redundant electronics if desired. The large operating temperature range as well as the increased IP  protection grade makes the encoder also interesting in applications with increased environmental requirements.
