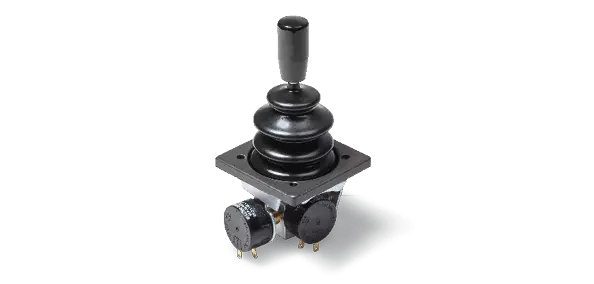

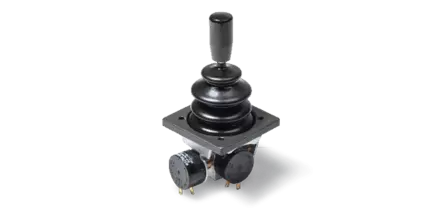

Finger Joystick Series 830

Unique joystick family for custom solutions with screwed shaft and handle

Product is no longer available.

Successor product series 842

  • Flexible, modular design
  • With conductive plastic type potentiometers
  • Inherently immune to RMI/RFI
  • Friction clutch for one axis, spring return for the other axis possible
  • Customer-specific handle shapes and rubber boots, Micro switches for detection of center position on request
Specifications
Axes 2
Output interface Analogue voltage output
Size Finger Joystick
Return Mechanism Spring Return, Friction Clutch
Technology Potentiometric
Housing depth under panel ≤ 36 mm
Sealing above panel IP54
Limiter plate Square
Description
The series 830 is the solution for special applications where ... more
Description
Close
Product description: Finger Joystick Series 830

The series 830 is the solution for special applications where flexibility and space-saving properties of the mechanics are asked for

The joysticks of the series 830 are unique in the sales program of MEGATRON: The all-metal mechanism provides the finest feel, and despite the compact dimensions, the robust mechanics consists of two different shafts for the two axes. Thus, both the potentiometric sensors, and the return mechanism can be customized independent of each other. For example, on request one axis can be ordered with a weak spring return, while the other is realized with friction clutch.
The series 830 is based on a modular concept. The steel shaft is screwed together with the handle, which allows for flexible combinations of handle, shaft length and rubber cover. This offers the possibility to integrate custom-made handles, covers and shafts.
