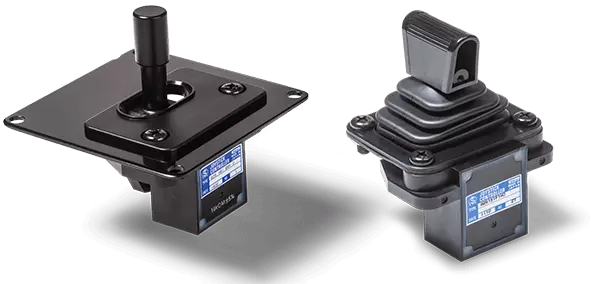

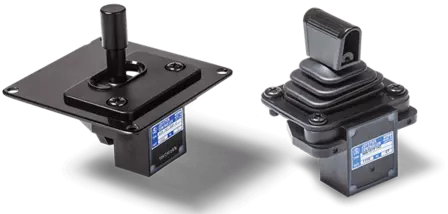

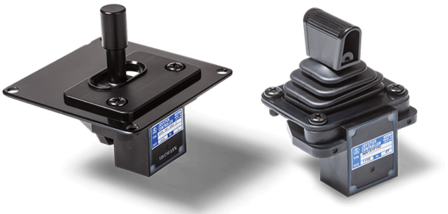

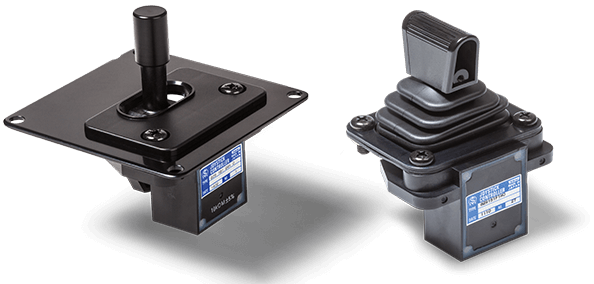

Finger Joystick Series 829

1-axis joystick of the highest quality for controlling one-dimensional parameters

  • Exceptional quality of mechanics and sensors
  • For demanding applications
  • Optional Hall Effect or potentiometer sensors
  • Diverse configuration options for micro switches, detent positions, etc.
  • With spring return to centre, to negative limit, or with friction hold
PotentiometerVDCmASwitchProtection class IP65
Data sheet
Specifications
Size Finger Joystick
Technology Hall-Sensor or Potentiometer
Axes 1
Return Mechanism Spring Return, Friction Clutch
Output interface Analogue current loop 4-20 mA, Analogue voltage output
Housing depth under panel ≤ 41 mm
Number of Pushbuttons 0, 1
Sealing above panel IP65 for versions with rubber boot
Limiter plate 1 axis joystick only
Description
Wherever durability and reliability are paramount, the 829 ... more
Description
Close
Product description: Finger Joystick Series 829

Wherever durability and reliability are paramount, the 829 series premium joystick is the first choice for 1 axis finger joysticks thanks to its solid mechanical construction and high quality feel.

The 829 series joystick meets the highest quality requirements. Its strengths lie in demanding single-axis applications where no compromises are made in terms of durability and reliability. The solid mechanical construction and resulting high quality haptics provide a secure feel for precise machine control.
The configuration options for the 829 series joysticks are varied and allow customization for almost any application. As well as a range of handle options, customers can choose between potentiometer or Hall effect sensors, and spring return or friction clutch for the single axis. The spring return is configured to return to the centre position as standard, but can also be ordered to return to the negative limit. In addition, detent positions and microswitches can be implemented for switching at the centre or on deflection. Protection above the panel can be upgraded to IP65 on request.
