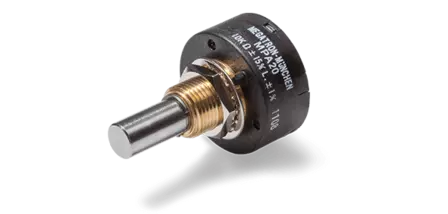

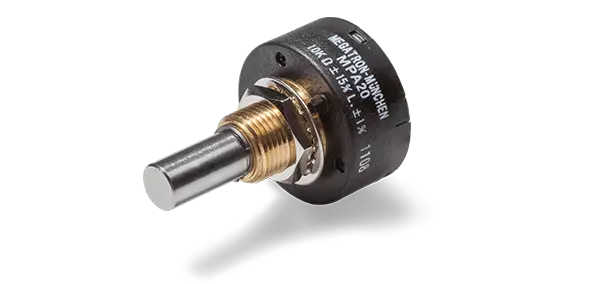

Conductive Plastic Potentiometer MPA20/21

Durable and accurate precision potentiometer in Ø22 mm housing and low installation depth

  • High durability and accuracy
  • Electrical effective angle of rotation up to 340°
  • Housing depth only 10.6 mm
  • Axially aligned ports
  • With or without mechanical end stop (320°/360°)
Data sheet
Specifications
Sensor technology Conductive Plastic Potentiometer
Effective electrical angle of rotation max. 340°
Functions / Features Without mech. stop, With mech. stop
Resolution Nearly infinite
Output signal Analogue
Electrical connection Solder contacts, Axial
Protection class IP40 (optional IP65)
Mounting Bushing
Shaft diameter 6.00 mm, 6.35 mm
Housing diameter 22 mm
Housing depth min. 10.6 mm
Description
The MPA20/21 potentiometer series in Ø22 mm housing is ideal for ... more
Description
Close
Product description: Conductive Plastic Potentiometer MPA20/21

The MPA20/21 potentiometer series in Ø22 mm housing is ideal for applications in which highly precise and durable sensors are required.

Thanks to the high-quality Comolded conductive plastic technology that is used, the conductive plastic potentiometer MPA20/21 (MPA21 with mech. End-stop) is sure to impress with its amazing accuracy and durability.

  • Highly durable and independent linearity ±1% (±0,5%)
  • With or without mechanical end stop (320°/360°)

Adaptation / Options:

  • Front sealing of the shaft
  • Front shaft adaptation
  • Shaft diameter 6.00 mm
  • Screwdriver slot
  • Center tapping
  • Improved linearity
  • Improved resistance tolerance

Note: The versions of the MPA21 with a mechanical stop can also be used as manual set-point adjusters

We offer many adaptations on request, such as:
Sealed housing case, special electrical angles of rotation, and special resistance and linearity tolerances. Furthermore, we can mount gear wheels or attach cable assemblies with or without connectors and much more. Please use our inquiry form and describe for which application you want to use the product so that we are able to determine the optimal product for your design-in.
