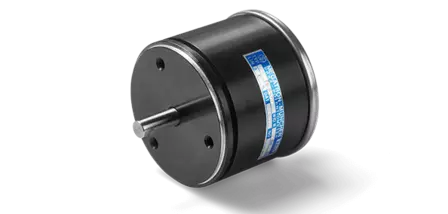

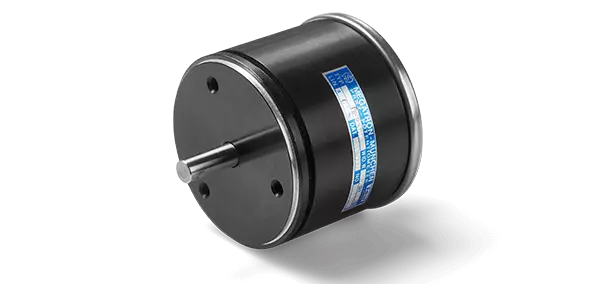

Conductive Plastic Potentiometer MFP500
The potentiometer for the highest IP protection, linearity and lifespan requirements in rugged Ø50.8 mm industrial design
- Completely sealed housing in IP65 and very long lifespan
- Achieves the highest linearity requirements with up to ±0.05%
- Very high electrically effective angle of rotation 355° ±2°
- Application in a wide range of temperatures
- 2 servo flange variants for precise mounting
- Robust metal housing
- With connector
Specifications
| Resolution | Nearly infinite |
|---|---|
| Functions / Features | Without mech. stop, Metal housing |
| Output signal | Analogue |
| Protection class | IP65 standard |
| Sensor technology | Conductive Plastic Potentiometer |
| Shaft diameter | 6.00 mm |
| Housing diameter | 51 mm |
| Mounting | Servo flange, Threaded holes |
| Electrical connection | Axial, Connector |
| Effective electrical angle of rotation | max. 355° |
| Housing depth | min. 40 mm |
Description
The MFP500 precision potentiometers are designed to meet high ... more
Description
CloseProduct description: Conductive Plastic Potentiometer MFP500
The MFP500 precision potentiometers are designed to meet high accuracy and reliability requirements. They have excellent linearity and lifespan. The housing is tight all around and meets the requirements of IP65. For precise mounting, the potentiometer is available in two servo flange versions.
The technical counterpart in terms of lifespan and linearity can be found in our MCP50 potentiometers. When it comes to meeting the requirements for enclosure IP protection in an economical and compact design - we recommend the potentiometers from the AL17/19 series.
