Conductive Plastic potentiometer-MCP22
Conductive Plastic potentiometer-MCP22

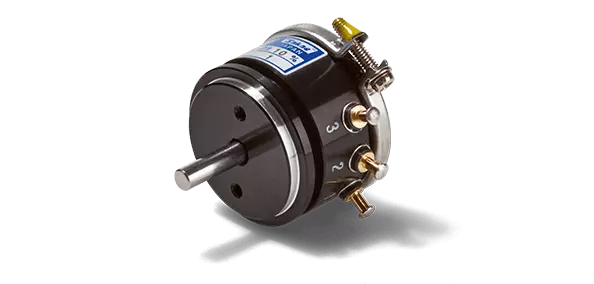

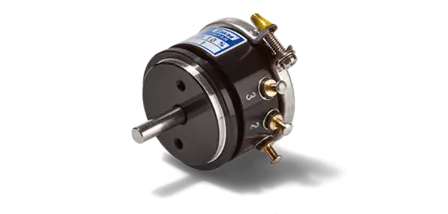

Conductive Plastic Potentiometer MCP22

The most compact high-resolution potentiometer with the highest lifespan - in this combination in our portfolio in Ø22 mm housing

  • The most compact and durable potentiometer in our portfolio
  • Excellent lifetime with over 50 million shaft movements
  • Applicable in a wide range of temperatures
  • Ø22 mm rugged metal housing
  • Very good linearity
  • Tandem with up to 5 gangs possible
  • Servo flange for precise mounting
  • 2 precision ball bearings
Data sheet
Compare
Remember
Specifications
Sensor technology Conductive Plastic Potentiometer
Effective electrical angle of rotation max. 320°
Functions / Features Opt. rear shaft, Opt. multiganged/ tandem, Metal housing, Without mech. stop
Resolution Nearly infinite
Output signal Analogue
Electrical connection Radial, Solder contacts
Protection class IP40
Mounting Threaded holes, Servo flange
Shaft diameter 3.00 mm
Housing diameter 22 mm
Housing depth min. 15 mm
Description
The MCP22 potentiometers with precision ball bearings and servo ... more
Description
Close
Product description: Conductive Plastic Potentiometer MCP22

The MCP22 potentiometers with precision ball bearings and servo flange are suitable for applications where a compact sensor with very long lifespan and excellent linearity is important.

The precision potentiometers of the MCP22 series are designed for high demands on accuracy and reliability. They have excellent linearity and life expectancy. The potentiometer is equipped with a servo flange for precise mounting. In closed loop controlled systems, the conductive plastic potentiometers can be used particularly advantageously. As passive components, they do not cause any dead times due to signal propagation and the signal is infinitely available.
