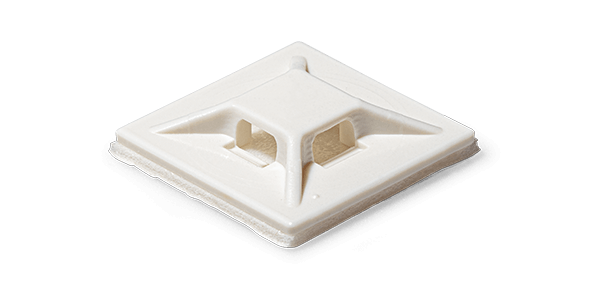

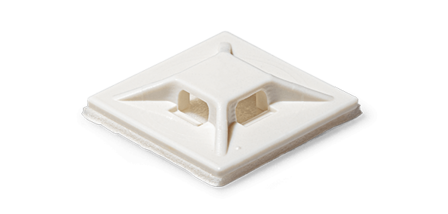

Cable tie mount ABM

Cable tie mount ABM

Mounting base for cable ties with approx. 4 mm width in four-way version. Sockets available in adhesive or screw mounting.

Description
Close
Product description: Cable tie mount ABM

Product variants

11 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
400142
ABM2S-A-C HALTEPLATTE
400143
ABMM-A-C KLEBEPLATTE
400144
ABMM-A-D KLEBEPLATTE
403475
HALTEPLATTE ABM2S-A-D 500ST
408404
HALTEPLATTE ABM2S-AT-C
408405
HALTEPLATTE ABM2S-AT-C0
408406
HALTEPLATTE ABMM-AT-C 100ST
408407
HALTEPLATTE ABMM-AT-C0 100ST
409560
HALTEPLATTE ABM2S-AT-D0
409826
HALTEPLATTE ABM2S-AT-D
409975
HALTEPLATTE ABM2S-A-C0 100ST
Assembly type with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape
Type Type 2 Type 1 Type 1 Type 2 Type 2 Type 2 Type 1 Type 1 Type 2 Type 2 Type 2
Material ABS ABS ABS ABS ABS ABS ABS ABS ABS ABS ABS
Temperature range -29°C - +49°C -29°C - +49°C -29°C - +49°C -29°C - +49°C -29°C - +82°C -29°C - +82°C -29°C - +82°C -29°C - +82°C -29°C - +82°C -29°C - +82°C -29°C - +49°C
Colour white white white white white black white black black white -
Widths in mm 25,4 19,1 19,1 25,4 25,4 25,4 19,1 19,1 25,4 25,4 25,4
Material adhesive film RUBBER RUBBER RUBBER RUBBER ACRYLAT_PE ACRYLAT_PE ACRYLAT_PE ACRYLAT_PE ACRYLAT_PE ACRYLAT_PE RUBBER
Height in mm 4,2 4,6 4,6 4,2 4,2 4,2 4,6 4,6 4,2 4,2 4,2
Depth in mm 25,4 19,1 19,1 25,4 25,4 25,4 19,1 19,1 25,4 25,4 25,4
Max. static load in g 227 136 136 227 227 227 136 136 227 227 227
