Drawing gromet LPR23

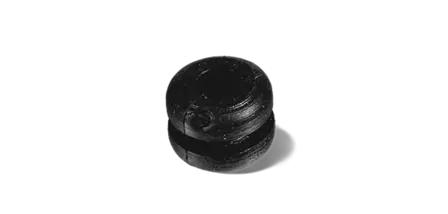

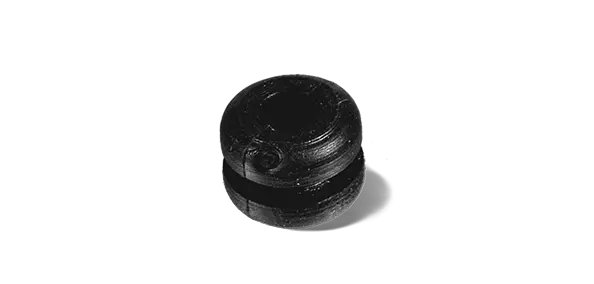

Gromet LPR23

Gromet LPR23

Grommet for panel thickness from 0.8 to 2.3 mm, for cables with Ø3.2 up to Ø24.6 mm or drill holes with Ø4.8 up to 31.5 mm

Description
Close
Product description: Gromet LPR23

Product variants

14 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
404881
LPR 2300
404882
LPR 2301
404883
LPR 2302
404884
LPR 2303
404885
LPR 2304
404886
LPR 2305
404887
LPR 2306
404888
LPR 2307
404889
LPR 2308
404890
LPR 2309
404891
LPR 2310
404892
LPR 2311
404893
LPR 2312
404894
LPR 2313
Material thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE)
Fire protection class UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB
Colour black black black black black black black black black black black black black black
Widths in mm 6,4 6,3 4,8 5,5 7 4,8 7 6,4 4,8 5,6 4,8 8 8 8
Ø Inner in mm 3,2 4,0 4,8 5,5 6,4 8,0 9,5 12,6 14,2 15,5 17,1 18,6 21,8 24,6
Ø Outer in mm 8,0 9,5 10,9 10,9 14,2 14,3 17,0 21,5 22,2 22,2 23,7 31,3 30,2 38,1
Panel thickness in mm 1,6 1,6 0,8 1,6 2,4 1,6 1,6 1,6 1,6 1,6 1,6 1,6 1,6 1,6
Ø Mounting hole in mm 4,8 6,4 7,7 8 9,5 10,9 12,5 16,8 17,1 18,8 18,7 24,8 25,1 31,5
