Standoff LPR15

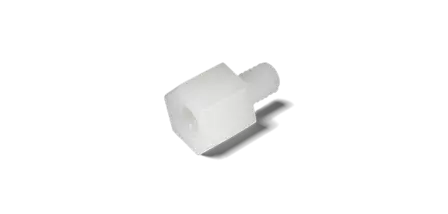

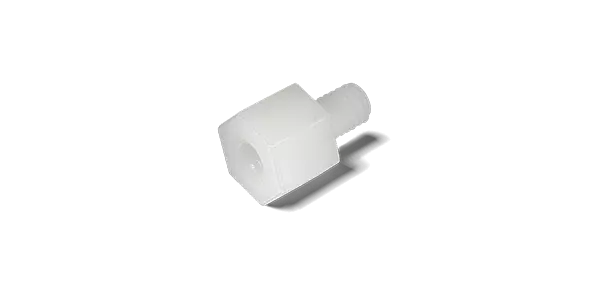

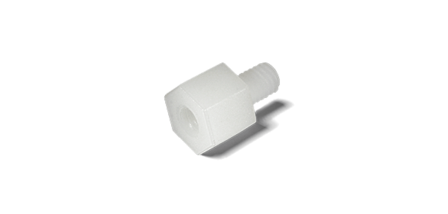

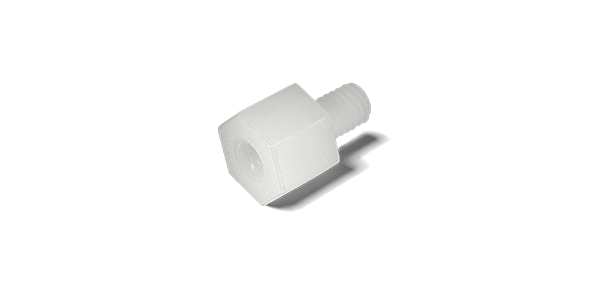

Plastic PCB standoff LPR15

Hexagon standoff with M3 or M4 male and female thread for distance length from 5 to 45 mm

Description
Close
Product description: Plastic PCB standoff LPR15

Product variants

11 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
404572
LPR 1505
404573
LPR 1506
404574
LPR 1507
404575
LPR 1508
404576
LPR 1509
404577
LPR 1510
404578
LPR 1515 M3
404579
LPR 1515 M4
404580
LPR 1519 M4
405303
LPR 1513 M4
405736
LPR 1520 M3
Distance height in mm 5,0 6,35 7,0 8,0 9,0 10,0 15,0 15,0 19,0 13,0 20,0
Model Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female)
Ø Female thread in mm M3 M3 M3 M3 M3 M3 M3 M4 M4 M4 M3
Thread depth (inside) in mm 4,0 4,0 6,0 6,0 6,0 8,0 10,0 10,0 8,0 10,0 10,0
Ø Male thread in mm M3 M3 M3 M3 M3 M3 M3 M4 M4 M4 M3
Thread length (outside) in mm 4,8 4,8 6,3 6,3 6,0 6,0 6,0 6,0 5,5 6,0 6,1
Outer Diameter body in mm 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Material of thread nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Colour natural natural natural natural natural natural natural natural natural natural natural
