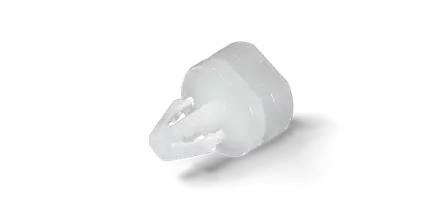

PCB spacer LPT873M

Spacer with column function for heavy loaded PCBs and snap-on mounting on the other side. For 4 to 15 mm spacing.

Product variants

9 variant(s) found
Can't find the product you want in the list? It is in the drawing! Just click here: Product enquiry
406958
LPT 8730-MINI-M
406959
LPT 8731-MINI-M
406960
LPT 8732-MINI-M
406961
LPT 8733-MINI-M
406962
LPT 8734-MINI-M
406963
LPT 8735-MINI-M
406964
LPT 8736-MINI-M
406965
LPT 8737-MINI-M
406966
LPT 8738-MINI-M
Distance height in mm 4,0 5,0 6,0 7,0 8,0 10,0 12,0 13,0 15,0
Mounting (A "top") Supporting surface Supporting surface Supporting surface Supporting surface Supporting surface Supporting surface Supporting surface Supporting surface Supporting surface
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Outer Diameter body in mm 7,0 7,0 7,0 7,0 7,0 7,0 7,0 7,0 7,0
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural natural natural natural
Ø Mounting hole (A "top") in mm 3,00 3,00 3,00 3,00 3,00 3,00 3,00 3,00 3,00
Overlap (A "top") in mm 3,8 3,8 3,8 3,7 3,8 3,8 3,8 3,8 3,8
Panel thickness (A "top") in mm 1,2 - 1,6 1,2 - 1,6 1,2 - 1,6 1,2 - 1,6 1,2 - 1,6 1,2 - 1,6 1,2 - 1,6 1,2 - 1,6 1,2 - 1,6
