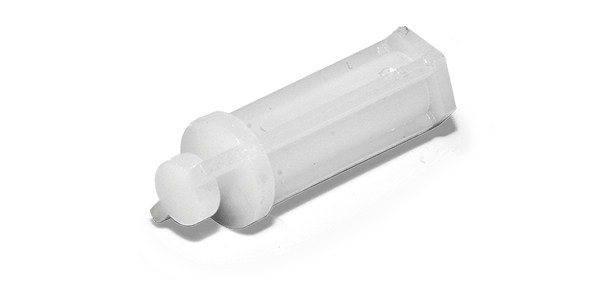

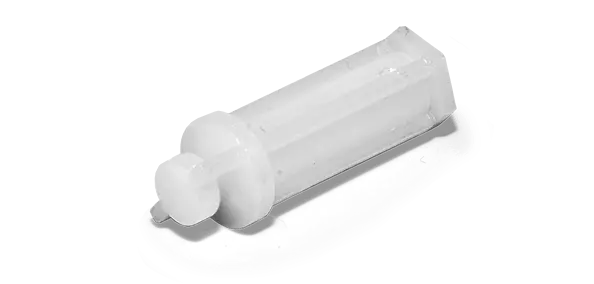

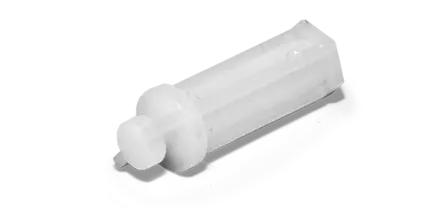

PCB Spacer LPR874

Spacer for screw mounting on one side and PCB holder on the other, in lengths 6.4 to 22.2 mm

Description
Close
Product description: PCB Spacer LPR874

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402397
LPR 8741
402398
LPR 8742
402399
LPR 8743
402400
LPR 8744
402575
LPR 8745
402576
LPR 8746
Distance height in mm 6,4 9,5 12,7 15,9 19,1 22,2
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Female thread Female thread Female thread Female thread Female thread Female thread
Ø Female thread in mm M3,5 M3,5 M3,5 M3,5 M3,5 M3,5
Thread depth (inside) in mm 5,20 7,9 7,9 7,9 7,9 7,9
Outer Diameter body in mm 8,3 8,3 8,3 8,3 8,3 8,3
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C
Colour natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 3,1 3,1 3,1 3,1 3,1 3,1
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57 1,57
