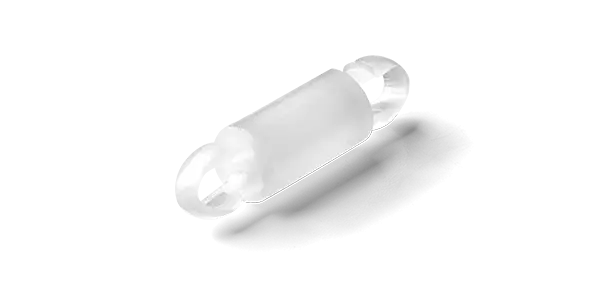

PCB spacer LPR83M2
Double-sided snap-on spacer for 2 to 22 mm spacing. For mounting max. 1.6 mm thick panels.
| 405525 LPR 8314-MINI-M-TYP 2 | 405560 LPR 8315-MINI-M-TYP 2 | 406565 LPR 8312-MINI-M-TYP 2 | 406630 LPR 8321-MINI-M-TYP 2 | 406705 LPR 8316-MINI-M-TYP 2 | 408131 LPR 8313-MINI-M-TYP 2 | 408271 LPR 8311-MINI-M-TYP 2 | 408561 LPR 8317-MINI-M-TYP 2 | 409664 LPR 8310-MINI-M-TYP 2 | 409665 LPR 8318-MINI-M-TYP 2 | 409666 LPR 8319-MINI-M-TYP 2 | 409667 LPR 8320-MINI-M-TYP 2 | 433254 LPR 8322-MINI-M TYP 2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Distance height in mm | 10,0 | 12,0 | 6,0 | 5,0 | 14,0 | 8,0 | 4,0 | 16,0 | 2,0 | 18,0 | 20,0 | 22,0 | 3,0 |
| Mounting (A "top") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Mounting (B "bottom") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Outer Diameter body in mm | 4,6 | 4,6 | 4,6 | 4,6 | 4,6 | 4,6 | 4,6 | 4,6 | 4,6 | 4,6 | 4,6 | 4,6 | 4,6 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Temperature range | -40°C - + 85°C | - | -40°C - + 85°C | -40°C - + 85°C | -40°C - + 85°C | -40°C - + 85°C | - | - | - | - | - | - | -40°C - + 85°C |
| Colour | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural |
| Ø Mounting hole (B "bottom") in mm | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 |
| Overlap (B "bottom") in mm | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 |
| Ø Mounting hole (A "top") in mm | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 | 3,50 |
| Overlap (A "top") in mm | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 |
| Panel thickness (A "top") in mm | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 |
| Panel thickness (B "bottom") in mm | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 | 1,65 |
