Drawing spacer LPR82MIN

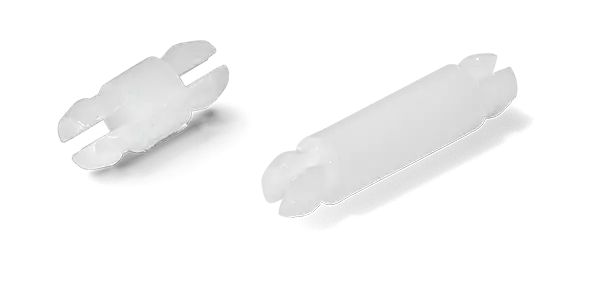

Spacer LPR82MIN

PCB spacer LPR82MIN

Spacer with snap-on mounting on both sides. For distance length from 3.2 to 38.1 mm.

Description
Close
Product description: PCB spacer LPR82MIN

Product variants

15 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
404028
LPR 8271
404029
LPR 8272
404030
LPR 8273
404031
LPR 8274-7,9
404032
LPR 8275-9,5
404033
LPR 8276-11,1
404034
LPR 8277
404035
LPR 8278-14,3
404036
LPR 8279-15,9
404038
LPR 8281
404039
LPR 8282
404040
LPR 8283-28,6
404041
LPR 8284-31,8
404042
LPR 8285
404043
LPR 8286-38,1
Distance height in mm 3,2 4,8 6,4 7,9 9,5 11,1 12,7 14,3 15,9 22,2 25,4 28,6 31,8 34,9 38,1
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Outer Diameter body in mm 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -40°C - +85°C -40°C - +85°C -40°C - +85°C - - - -40°C - +85°C - - -40°C - +85°C -40°C - +85°C - - -40°C - +85°C -
Colour natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90
Overlap (B "bottom") in mm 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60
Ø Mounting hole (A "top") in mm 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90 3,90
Overlap (A "top") in mm 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60 3,60
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57
Panel thickness (B "bottom") in mm 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57
