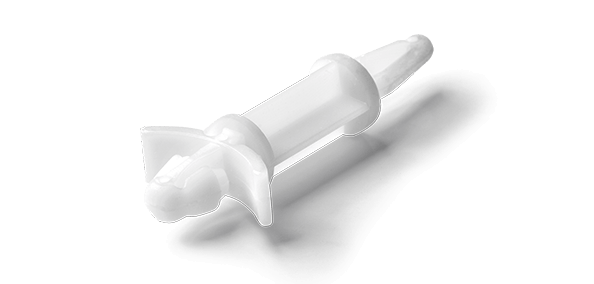

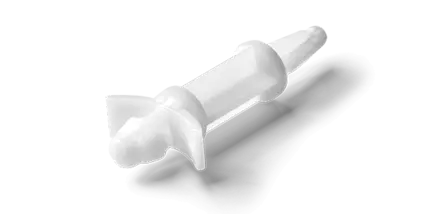

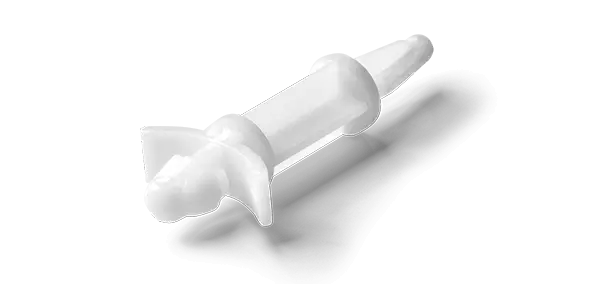

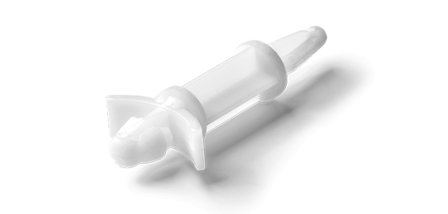

PCB spacer LPR80N3
Double-sided snap-on spacer for distance lengths from 4.8 to 34.9 mm. For mounting on max. 5.9 mm thick panels. Easy to release by pressing the nose.
Product variants
11 variant(s) found
Can't find the product you want in the list? It is in the drawing! Just click here:
Product enquiry
| 407701 LPR 8001-TYP 3 | 407702 LPR 8002-TYP 3 | 407703 LPR 8003-TYP 3 | 407704 LPR 8004-TYP 3 | 407705 LPR 8005-TYP 3 | 407706 LPR 8006-TYP 3 | 407707 LPR 8007-TYP 3 | 407708 LPR 8008-TYP 3 | 407709 LPR 8009-TYP 3 | 407710 LPR 8010-TYP 3 | 407711 LPR 8011-TYP 3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Distance height in mm | 4,8 | 6,4 | 9,5 | 12,7 | 15,9 | 19,1 | 22,2 | 25,4 | 28,6 | 31,8 | 34,9 |
| Mounting (A "top") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Mounting (B "bottom") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Outer Diameter body in mm | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Colour | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural |
| Ø Mounting hole (B "bottom") in mm | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 |
| Overlap (B "bottom") in mm | 5,85 | 5,85 | 5,85 | 5,85 | 5,85 | 5,85 | 5,85 | 5,85 | 5,85 | 5,85 | 5,85 |
| Ø Mounting hole (A "top") in mm | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Overlap (A "top") in mm | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 |
| Panel thickness (A "top") in mm | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 |
| Panel thickness (B "bottom") in mm | 0,75 - 2,0 | 0,75 - 2,0 | 0,75 - 2,0 | 0,75 - 2,0 | 0,75 - 2,0 | 0,75 - 2,0 | 0,75 - 2,0 | 0,75 - 2,0 | 0,75 - 2,0 | 0,75 - 2,0 | 0,75 - 2,0 |
