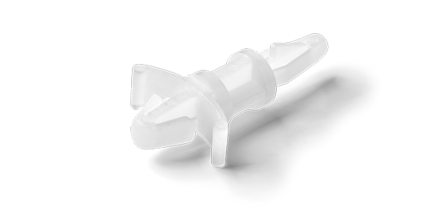

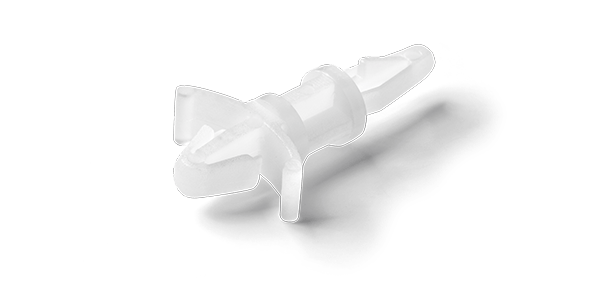

PCB spacer LPR80N2
Double-sided snap-on spacer for distance lengths from 4.8 to 34.9 mm. For mounting on max. 3.6 mm thick panels. Easy to release by pressing the nose.
| 400926 LPR 8001-TYP 2 | 400998 LPR 8002-TYP 2 | 403021 LPR 8003-TYP 2 | 403039 LPR 8007-TYP 2 | 403727 LPR 8004-TYP 2 | 407716 LPR 8005-TYP 2 | 407717 LPR 8006-TYP 2 | 407719 LPR 8008-TYP 2 | 407720 LPR 8009-TYP 2 | 407721 LPR 8010-TYP 2 | 407722 LPR 8011-TYP 2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Distance height in mm | 4,8 | 6,4 | 9,5 | 22,2 | 12,7 | 15,9 | 19,1 | 25,4 | 28,6 | 31,7 | 34,9 |
| Mounting (A "top") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Mounting (B "bottom") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Outer Diameter body in mm | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Colour | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural |
| Ø Mounting hole (B "bottom") in mm | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 |
| Overlap (B "bottom") in mm | 5,6 | 5,6 | 5,6 | 5,6 | 5,6 | 5,6 | 5,6 | 5,6 | 5,6 | 5,6 | 5,6 |
| Ø Mounting hole (A "top") in mm | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Overlap (A "top") in mm | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 |
| Panel thickness (A "top") in mm | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 |
| Panel thickness (B "bottom") in mm | 1,98 - 3,58 | 1,98 - 3,58 | 1,98 - 3,58 | 1,98 - 3,58 | 1,98 - 3,58 | 1,98 - 3,58 | 1,98 - 3,58 | 1,98 - 3,58 | 1,98 - 3,58 | 1,98 - 3,58 | 1,98 - 3,58 |
