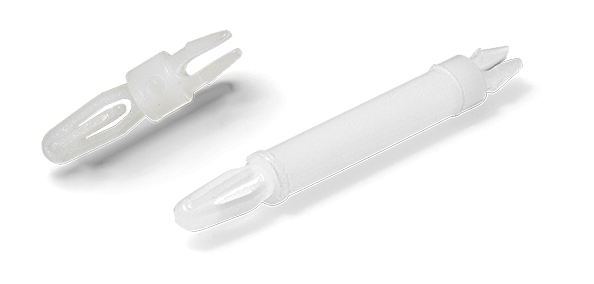

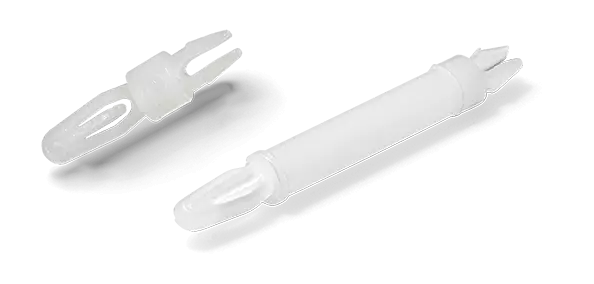

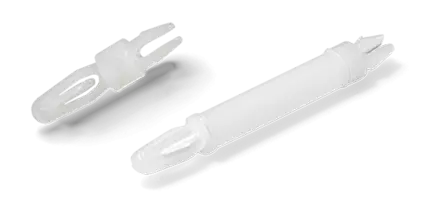

PCB spacer LPR80M70
Spacer with snap-on mounting on both sides for distance length 3.2 to 22.2 mm. Spacer without lateral wings for confined spaces. Easily releasable by pushing back the nose.
Product variants
10 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here:
Product enquiry
| 404009 LPR 8001-70-MINI | 404010 LPR 8002-70-MINI | 404011 LPR 8003-70-MINI | 404012 LPR 8004-70-MINI | 404013 LPR 8005-70-MINI | 404014 LPR 8007-70-MINI | 404015 LPR 8009-70-MINI | 404016 LPR 8010-70-MINI | 404017 LPR 8011-70-MINI | 410640 LPR 8006-70-MINI | |
|---|---|---|---|---|---|---|---|---|---|---|
| Distance height in mm | 3,2 | 4,8 | 6,4 | 7,9 | 9,5 | 12,7 | 15,9 | 19,1 | 22,2 | 11,1 |
| Mounting (A "top") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Mounting (B "bottom") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Outer Diameter body in mm | 4,4 | 4,4 | 4,4 | 4,4 | 4,4 | 4,4 | 4,4 | 4,4 | 4,4 | 4,4 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Temperature range | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C |
| Colour | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural |
| Ø Mounting hole (B "bottom") in mm | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 |
| Overlap (B "bottom") in mm | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 |
| Ø Mounting hole (A "top") in mm | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 | 3,18 |
| Overlap (A "top") in mm | 8,7 | 8,7 | 8,7 | 8,7 | 8,7 | 8,7 | 8,7 | 8,7 | 8,7 | 8,7 |
| Panel thickness (A "top") in mm | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 |
| Panel thickness (B "bottom") in mm | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 |
