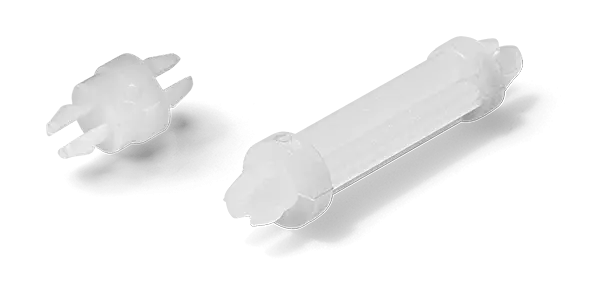

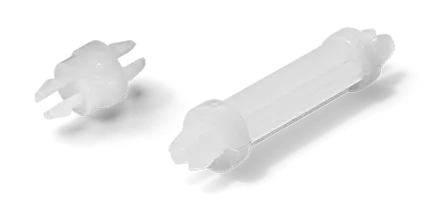

PCB spacer LPR71
Spacer with snap-on mounting on both sides for distance length 4.8 to 25.4 mm and stabilizing bearing surface for the PCB (bottom Ø7.1 mm / head Ø6.4 mm).
Product variants
8 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here:
Product enquiry
| 404001 LPR 7102-1 | 404002 LPR 7103-1 | 404003 LPR 7105-1 | 404004 LPR 7107-1 | 404005 LPR 7109-1 | 404006 LPR 7110-1 | 404007 LPR 7111-1 | 404008 LPR 7112-1 | |
|---|---|---|---|---|---|---|---|---|
| Distance height in mm | 4,8 | 6,4 | 9,5 | 12,7 | 15,9 | 19,1 | 22,2 | 25,4 |
| Mounting (A "top") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Mounting (B "bottom") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Outer Diameter body in mm | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Colour | natural | natural | natural | natural | natural | natural | natural | natural |
| Ø Mounting hole (B "bottom") in mm | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 |
| Overlap (B "bottom") in mm | 2,4 | 2,4 | 2,4 | 2,4 | 2,4 | 2,4 | 2,4 | 2,4 |
| Ø Mounting hole (A "top") in mm | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 |
| Overlap (A "top") in mm | 2,4 | 2,4 | 2,4 | 2,4 | 2,4 | 2,4 | 2,4 | 2,4 |
| Panel thickness (A "top") in mm | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 |
| Panel thickness (B "bottom") in mm | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 |
