Drawing spacer LPR70
Spacer LPR70

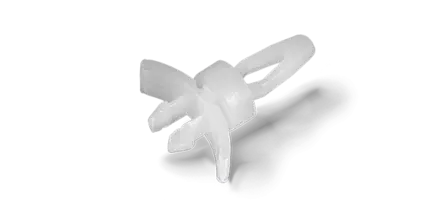

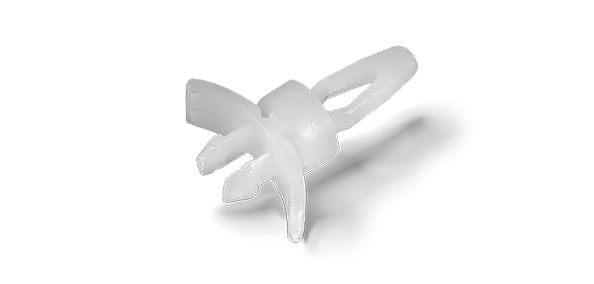

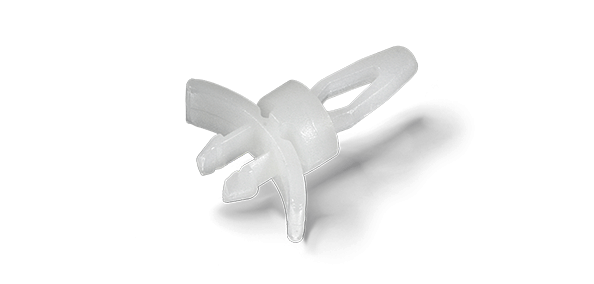

PCB spacer LPR70

Spacer with snap-on mounting on both sides for the distance length 4.8 to 22.2 mm

Description
Close
Product description: PCB spacer LPR70

Product variants

7 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
400973
LPR 7001
400974
LPR 7002
400975
LPR 7003
400976
LPR 7004
400977
LPR 7005
400978
LPR 7006
400979
LPR 7007
Distance height in mm 4,8 6,4 9,5 12,7 15,9 19,1 22,2
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Outer Diameter body in mm 7,1 7,1 7,1 7,1 7,1 7,1 7,1
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 - UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 4,75 4,75 4,75 4,75 4,75 4,75 4,75
Overlap (B "bottom") in mm 2,5 2,5 2,5 2,5 2,5 2,5 2,5
Ø Mounting hole (A "top") in mm 4,00 4,00 4,00 4,00 4,00 4,00 4,00
Overlap (A "top") in mm 10,2 10,2 10,2 10,2 10,2 10,2 10,2
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57 1,57 1,57
Panel thickness (B "bottom") in mm 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98
