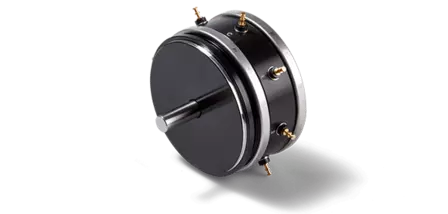

Conductive Plastic Potentiometer-SCX50

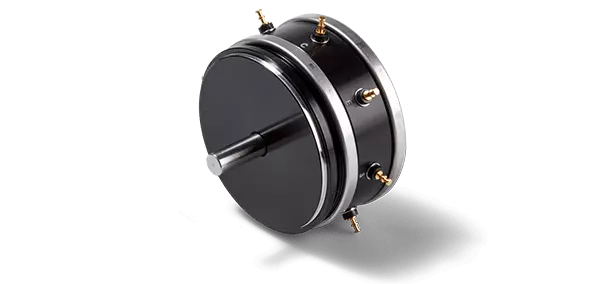

Conductive Plastic Potentiometer-SCX50

SIN-COS Potentiometer SCX50

Very precise non-linear potentiometer in Ø51 mm metal housing with very long lifespan and opt. rear shaft

  • Effective electrically angle of rotation 360°
  • Highest durability
  • 2 x ball bearings
  • Applicable in a wide temperature range
  • Servo flange for precise mounting
  • High resistance versions possible
  • Optional tandem version (up to 3)
Data sheet
Compare
Remember
Specifications
Resolution Nearly infinite
Functions / Features Without mech. stop, Metal housing, Sinus Cosinus, Opt. multiganged/ tandem, Opt. rear shaft
Output signal Analogue
Protection class IP40
Sensor technology Conductive Plastic Potentiometer
Shaft diameter 6.00 mm, 6.35 mm
Housing diameter 51 mm
Mounting Servo flange
Electrical connection Radial, Solder contacts
Effective electrical angle of rotation max. 360°
Housing depth min. 26 mm
Description
Sinus / Cosines SCX50 potentiometers can be used to implement ... more
Description
Close
Product description: SIN-COS Potentiometer SCX50

Sinus / Cosines SCX50 potentiometers can be used to implement mathematical functions.

This high-resolution special potentiometer in Ø51 mm housing makes it easy to convert movements in x-y coordinate system into adequate electrical quantities. The potentiometers are optimally used in tool manufacturing, in mechanical engineering and in meteorology. Very high precision with a very long lifespan of up to more than 50 million shaft rotations distinguish these sensors.
