Shear Beam force sensor KT703

Shear Beam KT703

Compact force sensor with integrated digital measuring amplifier and aluminum measuring body for measuring ranges up to 1 kN

  • Compact shear beam with integrated digital transducer
  • Output 0..10V, 4..20 mA @24 VSUP
  • Force transmission via M5-thread
  • Strain gauge
  • Aluminium alloy
Design Shear Beam
Nominal Load 200 N, 500 N, 1000 N
Direction of Force Tension and Compression
Output Signal 4..20 mA with integrated amplifier, 0..10 V with integrated amplifier
Amplifier With Amplifier
Protection Class IP40
Description
Close

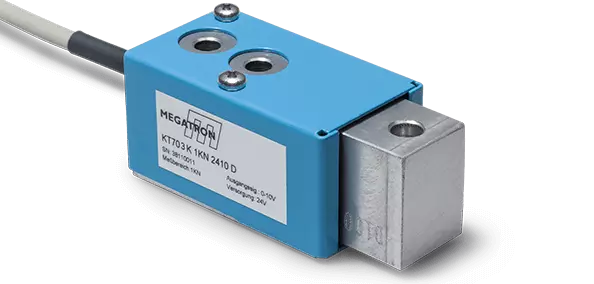

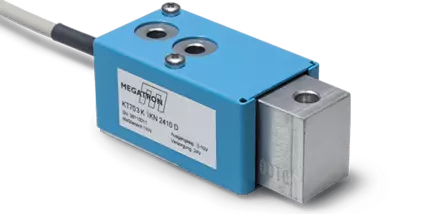

Product description: Shear Beam KT703

The KT703 force transducers are characterized in particular by their compact design, although they have an integrated digital measuring amplifier which delivers output signals of 0..10 V, 4..20 mA @ 24 VSUP. The force is introduced via the M5 internal thread for measuring ranges up to 1 kN for compressive or tensile forces. The aluminium measuring body works on the principle of the double bending beam. The mounting with two screws is simple and suitable for any flat, stable surface. The measuring principle of the Wheatstone strain gauge full bridge has proven itself over decades for this type of force sensor and ensures a long lifespan.
