Drawing rivet plastic PNKU
Rivet plastic PNKU

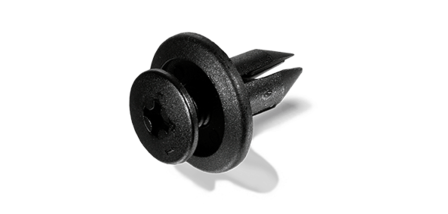

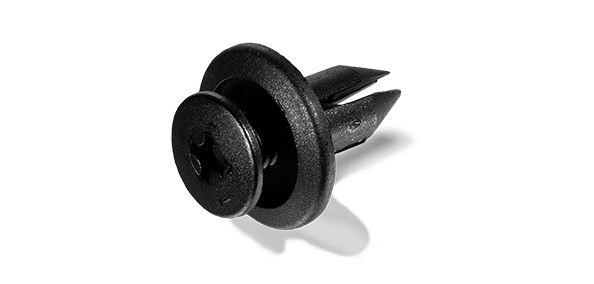

Plastic rivet PNKU

Rugged and releasable rivet with screw mounting for hole size 6.4 mm. The rivet head covers Ø15.1 mm. For panel thickness with 3.2 up to 4.4 mm.

Description
Close
Product description: Plastic rivet PNKU

Product variants

Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402797
PNK U 64125
Material nylon 66
Fire protection class UL 94 V-2
Temperature range -40°C - +115°C
Colour black
Ø Rivet head in mm 15,1
Height rivet head in mm 3
Height hull in mm 12,7
Rivet diameter in mm 6,4
Ø Mounting hole in mm 6,4
Panel thickness in mm 3,2 - 4,4
Model Screw rivet
