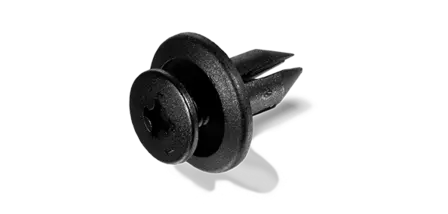

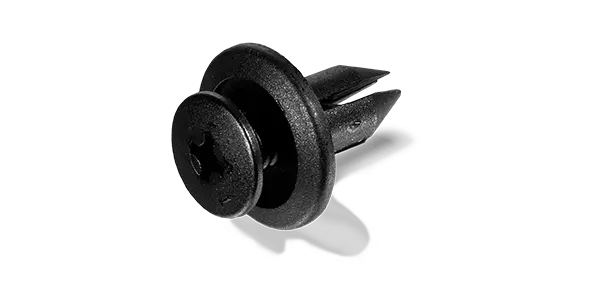

Plastic rivet PNKU
Rugged and releasable rivet with screw mounting for hole size 6.4 mm. The rivet head covers Ø15.1 mm. For panel thickness with 3.2 up to 4.4 mm.
| 402797 PNK U 64125 | |
|---|---|
| Material | nylon 66 |
| Fire protection class | UL 94 V-2 |
| Temperature range | -40°C - +115°C |
| Colour | black |
| Ø Rivet head in mm | 15,1 |
| Height rivet head in mm | 3 |
| Height hull in mm | 12,7 |
| Rivet diameter in mm | 6,4 |
| Ø Mounting hole in mm | 6,4 |
| Panel thickness in mm | 3,2 - 4,4 |
| Model | Screw rivet |
