Drawing rivet plastic PNKR
Rivet plastic PNKR

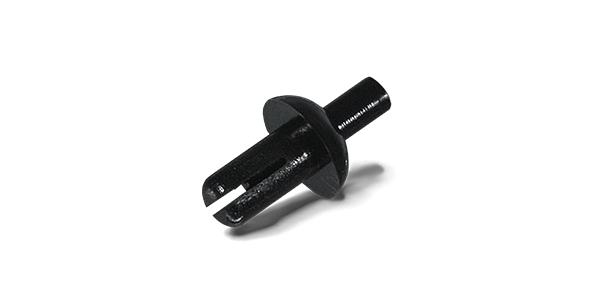

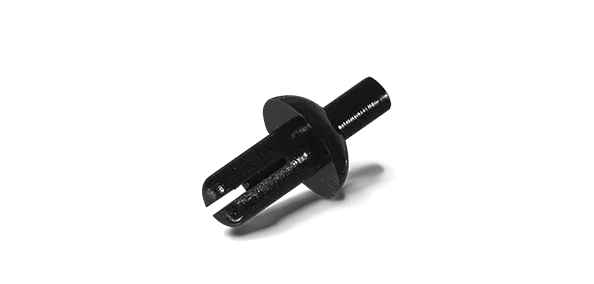

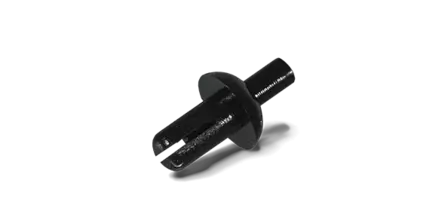

Plastic rivet PNKR

Expanding rivet for permanent installation. For hole sizes 3.1 up to 6.1 mm. Cover holes in the panel from Ø5.8 to Ø10.9 mm. For panel thickness from 2 up to 8 mm.

Description
Close
Product description: Plastic rivet PNKR

Product variants

8 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402774
PNK R 3055 SCHWARZ
402776
PNK R 4850 SCHWARZ
402777
PNK R 5050 SCHWARZ
402778
PNK R 5060 SCHWARZ
402779
PNK R 5070 SCHWARZ
402780
PNK R 5080 SCHWARZ
402781
PNK R 5090 SCHWARZ
402783
PNK R 6060 SCHWARZ
Material nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 polyethylene
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -40°C - 115°C -40°C - 115°C -40°C - 115°C -40°C - 115°C -40°C - 115°C -40°C - 115°C -40°C - 115°C 0 - 70 °C
Colour black black black black black black black black
Ø Rivet head in mm 5,8 9,9 9,4 9,4 9,4 9,4 9,4 10,9
Height rivet head in mm 2 3,3 2,8 2,8 2,8 2,8 2,8 1,5
Height hull in mm 5,6 5,1 5,1 6,1 7,1 8,1 8,9 6,1
Rivet diameter in mm 3 4,8 5 5 5 5 5 6,0
Shaft length in mm 8,9 10,4 9,4 9,4 11,4 11,4 12,4 9,4
Ø Mounting hole in mm 3,1 4,8 5,1 5,1 5,1 5,1 5,1 6,1
Panel thickness in mm 3,0 - 4,0 1,2 - 3,0 2,0 - 3,0 3,0 - 4,0 4,0 - 5,0 5,0 - 6,0 6,0 - 7,0 2,5 - 4,0
Model Expanding rivet Expanding rivet Expanding rivet Expanding rivet Expanding rivet Expanding rivet Expanding rivet Expanding rivet
