Drawing rivet plastic LPR13
Rivet plastic LPR13

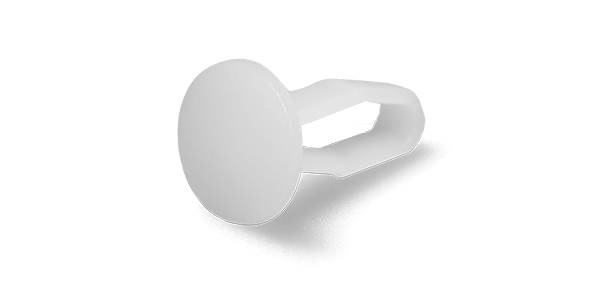

Plastic rivet LPR13

Rivet for hole sizes 3.2 up to 7.8 mm. Cover holes in the panel from Ø8 to Ø14 mm. Also used to fix two or more PCBs.

Description
Close
Product description: Plastic rivet LPR13

Product variants

5 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
404560
LPR 1309 WEISS
404564
LPR 1313 WEISS
404565
LPR 1314 WEISS
404566
LPR 1315 WEISS
406451
LPR 1309 SCHWARZ
Material acetal acetal acetal acetal acetal
Fire protection class UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB
Temperature range -50°C - +100°C -50°C - +100°C -50°C - +100°C -50°C - +100°C -50°C - +100°C
Colour natural natural natural natural black
Ø Rivet head in mm 8,0 12,0 14,0 12,0 8,0
Height rivet head in mm 1,5 2,0 2,2 2,0 1,5
Rivet diameter in mm 2,7 3,9 4,2 3,8 2,7
Rivet length in mm 13,0 17,0 19,0 17,5 13,0
Ø Mounting hole in mm 3,2 6,4 7,8 5,5 3,2
Panel thickness in mm 1,0 - 4,5 1,5 - 6,5 1,5 - 7,0 1,5 - 6,5 1,0 - 4,5
Model Mini-expanding rivet Mini-expanding rivet Mini-expanding rivet Mini-expanding rivet Mini-expanding rivet
