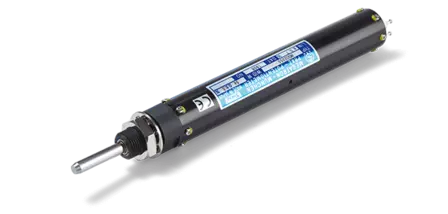

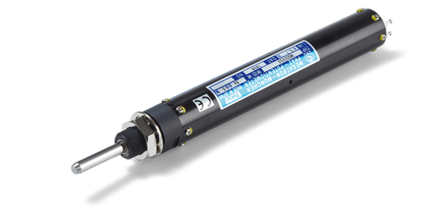

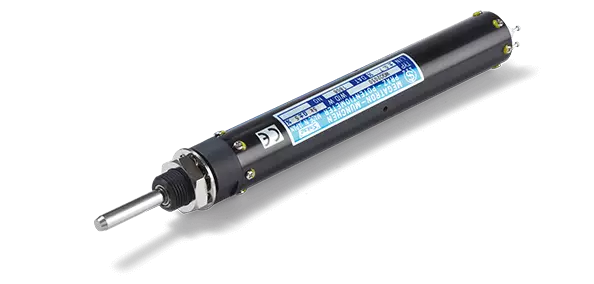

Potentiometric oil filled linear position sensor WGO20

Potentiometric linear position sensor with oil filling in measuring lengths of 50...200 mm for use in difficult environmental conditions

  • Measuring length 50…200 mm
  • Oil filled
  • Hermetically sealed
Potentiometer
Data sheet
Specifications
Effective electrical travel From 50 to 200 mm in 3 variants
Sensor Technology Potentiometric
Protection Class IP55
Resolution Analogue stepped, dep. on resistance value
Mechanical Detection Type Front side rod without spring return
Electrical Outlet Type Round Cable, Connector, Solder contacts
Mounting Bushing
Electr. output signal (voltage - potentiometric)
Ind. linearity (best) ±0.25% … ±0.7% (dep. o. travel & option)
Actuating speed < 2 m/s
Max. operating temperature +60 °C
Min. operating temperature -30 °C
Minimum overall length Long (> 50 cm), Medium (15 to 50 cm)
Supply voltage Potentiometric
Description
The WGO40 wirewound linear potentiometer is hermetically sealed ... more
Description
Close
Product description: Potentiometric oil filled linear position sensor WGO20

The WGO40 wirewound linear potentiometer is hermetically sealed and filled with oil. The transducer is largely insensitive to environmental conditions, making it ideal for use in extreme environments.
