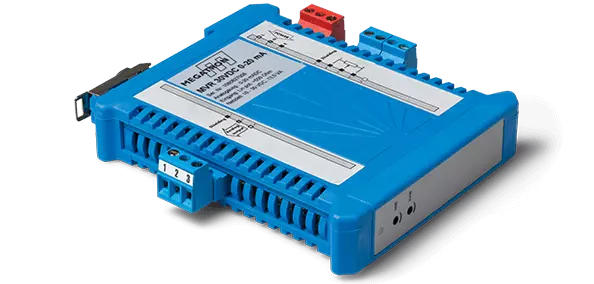

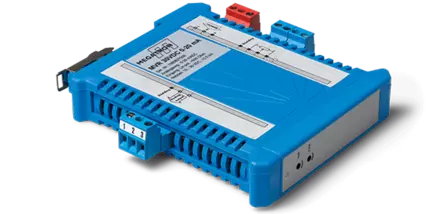

Product description: Measuring Amplifier MVR
Measuring amplifier for rotary and linear potentiometers
The MVR signal amplifier is a compact and cost-effective solution for signal conditioning of linear and rotary potentiometers in the resistance range of 0.. 100 kΩ. It reliably converts analogue input signals into standardized voltage or current signals and is ideal for use in PLC and automation systems.
The integrated DC sensor supply simplifies the connection. Galvanic isolation between the input and output protects against ground loops and interference, ensuring stable and safe operation in industrial environments.
Offset and gain can be easily adjusted via trimming potentiometers with an adjustment range of >±10 %. With a cut-off frequency of 1 kHz, a ripple of less than 15 mV (RMS) and a sensitivity temperature drift of less than ±0.001 %/°C, the MVR fulfils high requirements in terms of precision and signal quality. Combining reliability, accuracy and cost efficiency, the MVR is ideal for a wide range of applications in automation and control technology.
Options:
- Supply voltage 10.. 30 VDC or 80.. 250 VDC
- Output signals: Voltage: 0..2 V, 0..5V, 0..10V, ±5 V, ±10V
- Current: 0.. 20mA, 4.. 20mA
