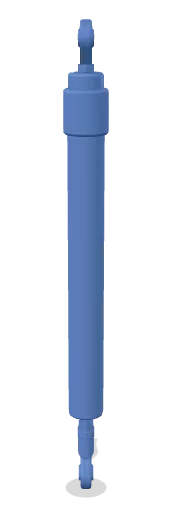

Potentiometric Linear Transducer RC20 ball joints

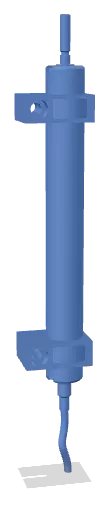

Potentiometric Linear Transducer RC20-brackets

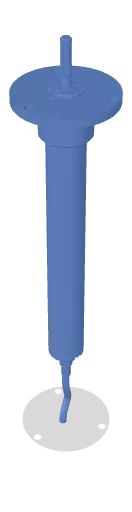

Potentiometric Linear Transducer RC20-Flange
Potentiometric Linear Transducer RC20IP67 ball joints
Potentiometric Linear Transducer RC20IP67 brackets

Potentiometric Linear Transducer RC20

Displacement sensor in robust design IP60/IP67 and front guided push rod in three mounting variants in measuring lengths 10 to 300 mm

  • For harsh environmental conditions - protection class up to IP67
  • Mounting by ball joints, mounting brackets or flange
  • Long life span and high accuracy
  • Measuring lengths from 10 mm to 300 mm
Effective electrical travel From 10 to 300 mm in 11 variants
Sensor Technology Potentiometric
Protection Class Upt to IP67
Mechanical Detection Type Front side rod without spring return
Electrical Outlet Type Round Cable, Connector
Mounting Flange, Ball Joints, Mounting Brackets / Assembly Block
Actuating speed < 10 m/s (IP60) / ≤ 3..5 m/s (IP67)
Resolution Analogue stepless
Ind. linearity (best) ±0.05 % … ±0.5 % (dep. on travel)
Min. operating temperature -30 °C
Max. operating temperature +100 °C
Supply voltage Potentiometric
Electr. output signal (voltage - potentiometric)
Minimum overall length Small (< 15 cm), Medium (15 to 50 cm), Long (> 50 cm)
Description
Close
Product description: Potentiometric Linear Transducer RC20

The displacement sensors of series RC20 are used in applications with harsh environmental conditions, which require a robust linear transducer with long life span, high accuracy and guided push rod with measuring lengths from 10 to 300 mm.

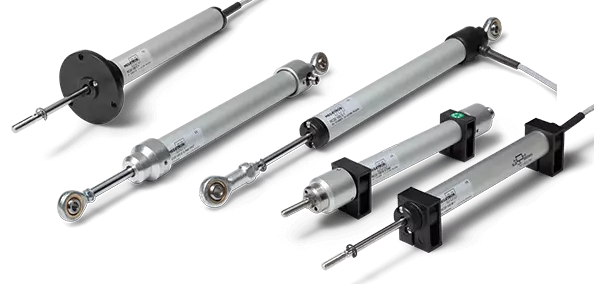

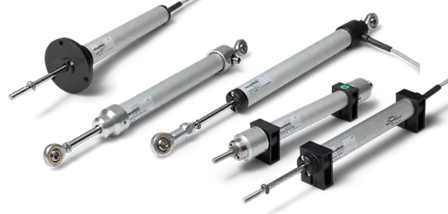

The linear potentiometers of the series RC20 are designed for applications with harsh environmental conditions. For mechanical coupling the displacement sensors are available in three mounting versions: mounting brackets, ball joints or flange. The variant with ball joints compensates movements transversely to the push rod, so that non-linear movements can also be coupled simply and without stress. The mechanical detection of linear movement is done by a front guided push rod.
The potentiometric distance measurement is carried out with a high-resolution conductive plastic resistive element. The displacement encoder has a very long lifetime and high accuracy due to its good linearity. Since the potentiometric measuring principle delivers absolute values and requires no electronic conversion, the position feedback signal is true power on without delay, temperature stable and robust against EMC influences.
Customization on the cable (length, finishing with plug) or on the push rod (length, thread, flat ...) are available on request.
