Linear potentiometer CLP13

Potentiometric Linear Transducer RC13

Displacement sensor in robust and compact design with protection class IP60 and front guided push rod in three mounting variants for 25 to 250 mm strokes

  • Compact displacement sensor
  • For harsh environmental conditions - protection class IP60 (on request IP65)
  • Mounting by ball joints, mounting brackets or flange
  • Long lifetime and accuracy
  • Measuring lengths from 25 mm to 300 mm
Effective electrical travel From 25 to 250 mm in 8 Variants
Sensor Technology Potentiometric
Protection Class Up to IP65
Mechanical Detection Type Front side rod without spring return
Electrical Outlet Type Round Cable
Mounting Flange, Ball Joints, Mounting Brackets / Assembly Block
Actuating speed < 10 m/s
Resolution Analogue stepless
Ind. linearity (best) ±0.05 % … ±0.2 % (dep. on travel)
Min. operating temperature -30 °C
Max. operating temperature +100 °C
Supply voltage Potentiometric
Electr. output signal (voltage - potentiometric)
Minimum overall length Small (< 15 cm), Medium (15 to 50 cm)
Product description: Potentiometric Linear Transducer RC13

The compact displacement sensors of series RC13 are used in applications with harsh environmental conditions, which require a robust linear transducer with long lifetime, high accuracy and a guided push rod with measuring lengths from 25 to 250 mm.

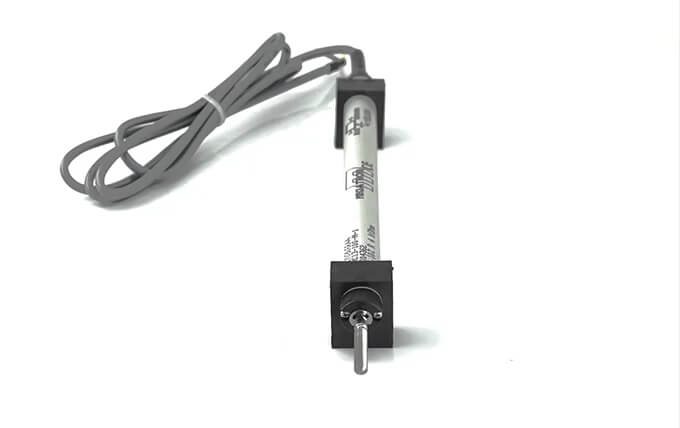

The compact linear potentiometers of the series RC13 are designed for applications with harsh environmental conditions. For mechanical coupling, the displacement sensors are available in three mounting versions: mounting brackets, ball joints or flange. The variant with ball joints compensates movements transversely to the push rod, so that non-linear movements can also be coupled simply and without stress. The mechanical detection of linear movement is done by a front guided push rod.
The potentiometric distance measurement is carried out with a high-resolution conductive plastic resistive element. The displacement encoder has a very long lifetime and high accuracy due to its good linearity. Since the potentiometric measuring principle delivers absolute values and requires no electronic conversion, the position feedback signal is true power on without delay, temperature stable and robust against EMC influences.
Customization on the cable (length, finishing with plug) or on the push rod (length, thread, flat ...) are available on request.
