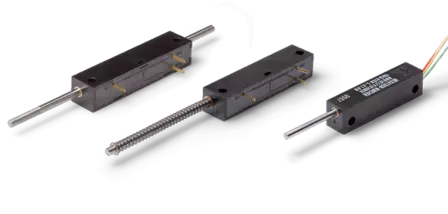

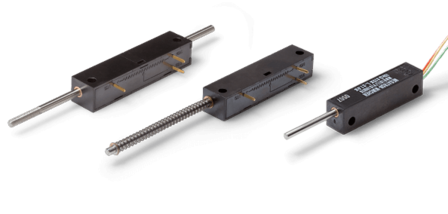

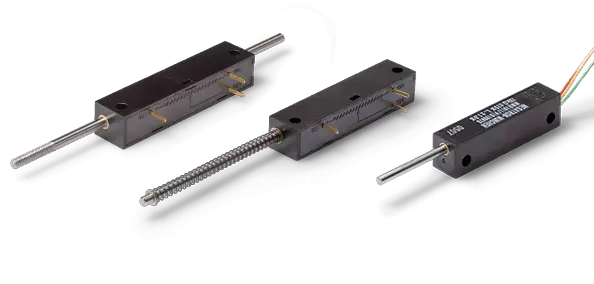

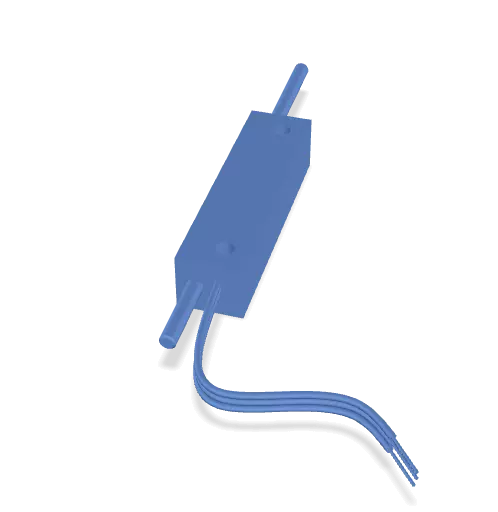

Potentiometric Linear Transducer MM10

Miniature linear transducer with front and rear guided push rod for 8 mm to 15 mm strokes

  • Linear potentiometer with almost infinite resolution
  • Space-saving miniature design
  • Measuring lengths from 8 to 15 mm
  • Rear and front guided push rod
  • Long lifetime
  • Optionally with reduced spring force
Potentiometer
Data sheet
Specifications
Effective electrical travel From 8 to 15 mm in 4 variants
Sensor Technology Potentiometric
Protection Class Up to IP54 (standard IP40)
Resolution Analogue stepless
Mechanical Detection Type Front and rear side rod with/without spring return
Electrical Outlet Type Strands, Solder contacts
Mounting Screw Mounting / Bore Holes
Electr. output signal (voltage - potentiometric)
Ind. linearity (best) ±1% … ±2% (dep. on option)
Actuating speed < 2 m/s
Max. operating temperature +105 °C
Min. operating temperature -30 °C
Minimum overall length Small (< 15 cm)
Supply voltage Potentiometric
Description
The MM10 without spring return / MMR10 with spring return series ... more
Description
Close
Product description: Potentiometric Linear Transducer MM10

The MM10 without spring return / MMR10 with spring return series is used in applications where space is at a premium and a miniaturised displacement sensor with long life, high accuracy and a double guided push rod is required.

The MM10 / MMR10 series of linear potentiometers have a very compact design, making them ideal for applications where space is at a premium. The potentiometric displacement measurement is performed using a high-resolution conductive plastic resistive element. Thanks to this comolded conductive plastic technology and the high quality sleeve bearings, the compact displacement encoder has a very long life and high accuracy due to its good linearity. As the potentiometric measuring principle provides absolute values and requires no electronic conversion, the position feedback signal is true power on without delay, temperature stable and robust against EMC influences.
In the MM(R)10 series of displacement sensors, the mechanical detection of linear motion is achieved by means of a front and rear guided push rod. The displacement sensor can be used as a probe or with a guided push rod. The internal or external spring return enables additional applications. The MM(R)10-15 linear potentiometer with solder pins is designed for direct integration on printed circuit boards. Customization of the cable (length, connector version) or of the plunger (length, thread, flat...) is available on request.
