Potentiometric Linear Transducer MBX

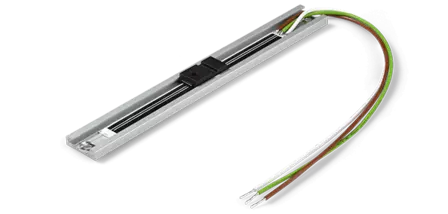

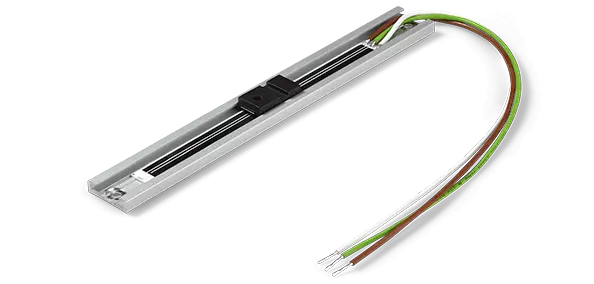

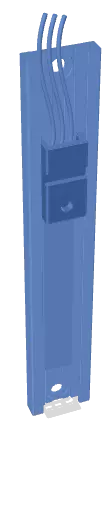

Potentiometric linear transducer MBX

Extremely flat linear transducer with only 7 mm height and universal cursor ideal for tight space for 50 to 200 mm strokes

  • Minimum height only < 7 mm
  • Easy mounting
  • Flexible mechanical coupling due to universal cursor
  • No push rod necessary
Effective electrical travel From 50 to 200 mm in 4 variants
Sensor Technology Potentiometric
Protection Class IP40
Mechanical Detection Type Guided cursor
Electrical Outlet Type Strands
Mounting Screw Mounting / Bore Holes
Actuating speed < 0.5 m/s
Resolution Analogue stepless
Ind. linearity (best) ±1%
Min. operating temperature -15 °C
Max. operating temperature +70 °C
Supply voltage Potentiometric
Electr. output signal (voltage - potentiometric)
Minimum overall length Small (< 15 cm), Medium (15 to 50 cm)
Description
Close
Product description: Potentiometric linear transducer MBX

The potentiometric displacement sensor series MBX is excellently suited for very limited installation space due to its extremely flat design with an overall height of only 7 mm. In addition, the universal cursor can be coupled mechanically in a flexible manner, so that no push rod is required, thus saving space in the customer's housing. With its open design, the displacement encoder is designed for installation in a customer housing.
The sensors are linear displacement transducers based on conductive plastic technology. The potentiometric measuring principle makes the displacement sensors insensitive to X-rays and EMC influences. Please note that a potentiometric sensor with conductive plastic technology is not integrated into the application as a "resistor". Basically the voltage divider circuit should be used, we recommend "overhead mounting".

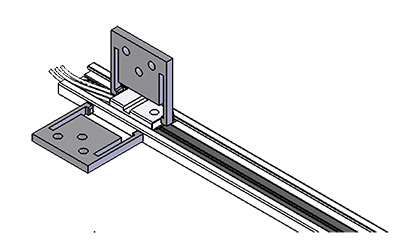

Universal coupling of the cursor in the application - installation example:
MBX Slide coupling Example



Application example: linear sensors for drives
