Potentiometric Linear Transducer CD18

Potentiometric linear position sensor CD18

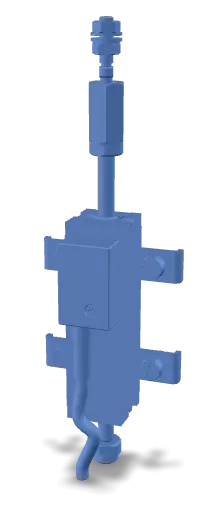

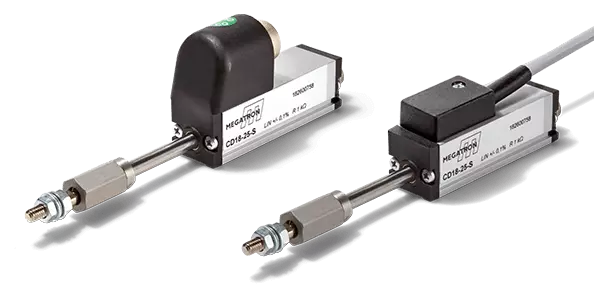

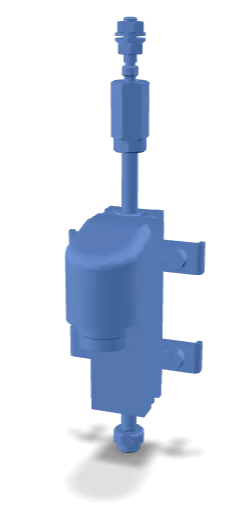

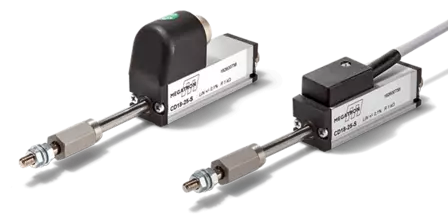

Potentiometric position transducer CD18 with rear and front guided push rod and pilot ring in measuring lengths of 25…150 mm

  •  Cable and connector versions
  •  25…150 mm measuring travel
  •  Guided push rod on both sides
Effective electrical travel From 25 to 150 mm in 5 variants
Sensor Technology Potentiometric
Protection Class IP40
Mechanical Detection Type Push rod without spring return
Electrical Outlet Type Round Cable, Connector
Mounting Mounting clamps (1 set included)
Actuating speed < 10 m/s
Resolution Analogue stepless
Ind. linearity (best) ±0.05 % … ±0.2 % (dep. on travel)
Min. operating temperature -30 °C
Max. operating temperature +100 °C
Supply voltage Potentiometric
Electr. output signal (voltage - potentiometric)
Minimum overall length Small (< 15 cm), Medium (15 to 50 cm)
Product description: Potentiometric linear position sensor CD18

The linear potentiometers of the CD18 series have a guided push rod on both sides and are available in the measuring lengths 25…150 mm. The sensors have a coupling (WKM8 1 piece included in the scope of delivery) which facilitates mounting and compensates for lateral misalignment. A set of clamps is included in the scope of delivery.
